P. 33

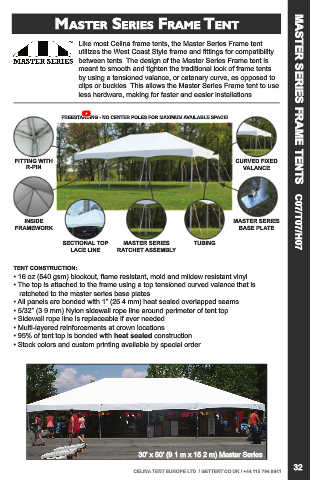

MASTEr SErIES frAME TENT
Like most Celina frame tents, the Master Series Frame tent
utilizes the West Coast Style frame and fittings for compatibility
between tents. The design of the Master Series Frame tent is
meant to smooth and tighten the traditional look of frame tents
by using a tensioned valance, or catenary curve, as opposed to
clips or buckles. This allows the Master Series Frame tent to use
less hardware, making for faster and easier installations.
FREESTANDING - NO CENTER POLES FOR MAXIMUM AVAILABLE SPACE! MASTER SERIES FRAME TENTS C07/T07/H07
FITTING WITH CURVED FIXED
R-PIN VALANCE
INSIDE MASTER SERIES
FRAMEWORK BASE PLATE
SECTIONAL TOP MASTER SERIES TUBING
LACE LINE RATCHET ASSEMBLY
TENT CONSTRUCTION:
• 16 oz (540 gsm) blockout, flame resistant, mold and mildew resistant vinyl
• The top is attached to the frame using a top tensioned curved valance that is
ratcheted to the master series base plates
• All panels are bonded with 1” (25.4 mm) heat sealed overlapped seams
• 5/32” (3.9 mm) Nylon sidewall rope line around perimeter of tent top
• Sidewall rope line is replaceable if ever needed
• Multi-layered reinforcements at crown locations
• 95% of tent top is bonded with heat sealed construction
• Stock colors and custom printing available by special order
30’ x 50’ (9.1 m x 15.2 m) Master Series
20’ x 20’ Master Series
32
