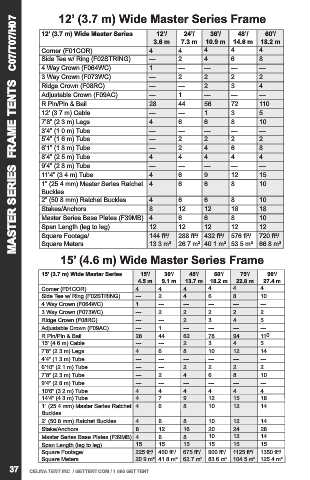

12’ (3.7 m) Wide Master Series Frame
MASTER SERIES FRAME TENTS C07/T07/H07
12’ (3.7 m) Wide Master Series 12’/ 24’/ 36’/ 48’/ 60’/
3.6 m 7.3 m 10.9 m 14.6 m 18.2 m
Corner (F01COR) 4 4 4 4 4
Side Tee w/ Ring (F02STRING) --- 2 4 6 8
4 Way Crown (F064WC) 1 --- --- --- ---
3 Way Crown (F073WC) --- 2 2 2 2
Ridge Crown (F08RC) --- --- 2 3 4
Adjustable Crown (F09AC) --- 1 --- --- ---
R Pin/Pin & Bail 28 44 56 72 110
12’ (3.7 m) Cable --- --- 1 3 5
7’8” (2.3 m) Legs 4 6 6 8 10
3’4” (1.0 m) Tube --- --- --- --- ---
5’4” (1.6 m) Tube --- 2 2 2 2
6’1” (1.8 m) Tube --- 2 4 6 8
8’4” (2.5 m) Tube 4 4 4 4 4
9’4” (2.8 m) Tube --- --- --- --- ---
11’4” (3.4 m) Tube 4 6 9 12 15
1” (25.4 mm) Master Series Ratchet 4 6 6 8 10
Buckles
2” (50.8 mm) Ratchet Buckles 4 6 6 8 10
Stakes/Anchors 8 12 12 16 18
Master Series Base Plates (F39MB) 4 6 6 8 10
Span Length (leg to leg) 12 12 12 12 12
Square Footage/ 144 ft²/ 288 ft²/ 432 ft²/ 576 ft²/ 720 ft²/
Square Meters 13.3 m² 26.7 m² 40.1 m² 53.5 m² 66.8 m²
15’ (4.6 m) Wide Master Series Frame

15’ (3.7 m) Wide Master Series 15’/ 30’/ 45’/ 60’/ 75’/ 90’/
4.5 m 9.1 m 13.7 m 18.2 m 22.8 m 27.4 m
Corner (F01COR) 4 4 4 4 4 4
Side Tee w/ Ring (F02STRING) --- 2 4 6 8 10
4 Way Crown (F064WC) 1 --- --- --- --- ---
3 Way Crown (F073WC) --- 2 2 2 2 2
Ridge Crown (F08RC) --- --- 2 3 4 5
Adjustable Crown (F09AC) --- 1 --- --- --- ---
R Pin/Pin & Bail 28 44 62 78 94 110
15’ (4.6 m) Cable --- --- 2 3 4 5
7’8” (2.3 m) Legs 4 6 8 10 12 14
4’4” (1.3 m) Tube --- --- --- --- --- ---
6’10” (2.1 m) Tube --- --- 2 2 2 2
7’8” (2.3 m) Tube --- 2 4 6 8 10
9’4” (2.8 m) Tube --- --- --- --- --- ---
10’6” (3.2 m) Tube 4 4 4 4 4 4
14’4” (4.3 m) Tube 4 7 9 12 15 18
1” (25.4 mm) Master Series Ratchet 4 6 8 10 12 14
Buckles
2” (50.8 mm) Ratchet Buckles 4 6 8 10 12 14
Stake/Anchors 8 12 16 20 24 28
Master Series Base Plates (F39MB) 4 6 8 10 12 14
Span Length (leg to leg) 15 15 15 15 15 15
Square Footage/ 225 ft²/ 450 ft²/ 675 ft²/ 900 ft²/ 1125 ft²/ 1350 ft²/
Square Meters 20.9 m² 41.8 m² 62.7 m² 83.6 m² 104.5 m² 125.4 m²
