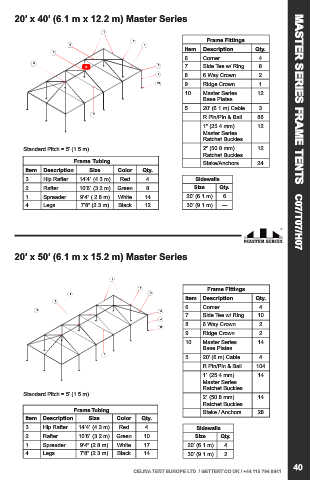

20’ x 40’ (6.1 m x 12.2 m) Master Series
4 3 2 1
1
Frame Fittings
D 7 D
2 3
Item Description Qty.
9
6 Corner 4
8
6 7 Side Tee w/ Ring 8
4 8 6 Way Crown 2
489.96 in
[12444.89 mm] 10 9 Ridge Crown 1
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
10 Master Series 12
Base Plates
C C
5 20’ (6.1 m) Cable 3
R Pin/Pin & Bail 88
5
1” (25.4 mm) 12
Master Series MASTER SERIES FRAME TENTS C07/T07/H07
Ratchet Buckles
Standard Pitch = 5’ (1.5 m) 2” (50.8 mm) 12
Ratchet Buckles
Frame Tubing
B 154.39 in B Stake/Anchors 24
[3921.43 mm]
97.20 in BOTTOM OF BASEPLATE Item Description Size Color Qty.
[2468.75 mm] TO TOP OF RIDGE
BOTTOM OF BASEPLATE
TO TOP OF EAVE 3 Hip Rafter 14’4” (4.3 m) Red 4 Sidewalls
2 Rafter 10’6” (3.2 m) Green 8 Size Qty.
251.13 in 1 Spreader 9’4” ( 2.8 m) White 14 20’ (6.1 m) 6
[6378.70 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 4 Legs 7’8” (2.3 m) Black 12 30’ (9.1 m) ---
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 14 2AST112 9'4" (2.8 m) - Aluminum Single Tubing
2 8 2AST126 10'6" (3.2 m) - Aluminum Single Tubing
A 3 4 2AST172 14'4" (4.3 m) - Aluminum Single Tubing THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
4 12 2AST92 7'8" (2.3 m) - Aluminum Single Tubing PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
5 3 ACFTC1875X20CAR 3/16'' x 20' (4.8 mm x 6 m) Frame Tent Cable with Carabiners. CELINA, OH 45822
6 4 F01COR Corner Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
7 8 F02STRING Side Tee with Ring Fitting DRAWN BY: TOLERANCE:
8 2 F056WC 6 Way Crown Fitting PART NUMBER: Leslie +/-1 in
[+/-25.40 mm]
9 1 F08RC Ridge Crown Fitting 20'x40' Master Series Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
10 12 F39MB Master Tent Base Plate Fitting inches [mm] 1 C 1 / 65 8/9/2017
