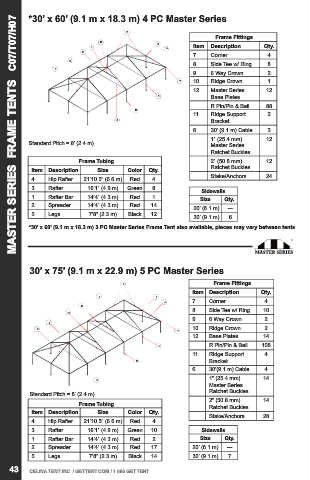

*30’ x 60’ (9.1 m x 18.3 m) 4 PC Master Series
4 3 2 1
MASTER SERIES FRAME TENTS C07/T07/H07
2
Frame Fittings
D D
10
8 Item Description Qty.
1
4
7 Corner 4
11
8 Side Tee w/ Ring 8
9
3
9 6 Way Crown 2
729.96 in
[18540.89 mm] 7 10 Ridge Crown 1
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
12 Master Series 12
5 Base Plates
C C
R Pin/Pin & Bail 88
12
11 Ridge Support 2
6 Bracket
6 30’ (9.1 m) Cable 3
1” (25.4 mm) 12
Standard Pitch = 8’ (2.4 m) Master Series
Ratchet Buckles
183.60 in
B [4663.54 mm] B
97.20 in BOTTOM OF BASEPLATE Frame Tubing 2” (50.8 mm) 12
[2468.75 mm] TO TOP OF RIDGE
BOTTOM OF BASEPLATE Ratchet Buckles
TO TOP OF EAVE Item Description Size Color Qty.
4 Hip Rafter 21’10.5” (6.6 m) Red 4 Stake/Anchors 24
371.13 in
[9426.70 mm]
OUTSIDE OF BASEPLATE 3 Rafter 16’1” (4.9 m) Green 8
TO OUTSIDE OF BASEPLATE Sidewalls
PARTS LIST 1 Rafter Bar 14’4” (4.3 m) Red 1
ITEM QTY PART NUMBER DESCRIPTION Size Qty.
1 1 2AST172 14'4" (4.3 m) - Aluminum Single Tubing
2 14 2AST172 14'4" (4.3 m) - Aluminum Single Tubing 2 Spreader 14’4” (4.3 m) Red 14
3 8 2AST193 16'1" (4.9 m)- Aluminum Single Tubing 20’ (6.1 m) ---
4 4 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube 5 Legs 7’8” (2.3 m) Black 12
5 12 2AST92 7'8" (2.3 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 30’ (9.1 m) 6
A
6 3 ACFTC1875X30CAR 3/16'' x 30' (4.8 mm x 9.1 m) Frame Tent Cable with Carabiners. PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
7 4 F01COR Corner Fitting CELINA, OH 45822
8 8 F02STRING Side Tee with Ring Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
9 2 F056WC 6 Way Crown Fitting *30’ x 60’ (9.1 m x 18.3 m) 3 PC Master Series Frame Tent also available, pieces may vary between tents
TOLERANCE:
DRAWN BY:
10 1 F08RC Ridge Crown Fitting PART NUMBER: Leslie +/-1 in
[+/-25.40 mm]
11 2 F12RSB Single Tube Ridge Support Bracket Fitting 30'x60' Master Series Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
12 12 F39MB Master Tent Base Plate Fitting inches [mm] 1 C 1 / 90 8/10/2017
4 3 2 1
4 3 2 1
30’ x 75’ (9.1 m x 22.9 m) 5 PC Master Series
Frame Fittings
2
D
D Item Description Qty.
1 8
4 7 Corner 4
11
8 Side Tee w/ Ring 10
10
9 6 Way Crown 2
9
3 10 Ridge Crown 2
7
909.96 in
[23112.89 mm] 12 Base Plates 14
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
5 R Pin/Pin & Bail 108
C C
11 Ridge Support 4
Bracket
12
6 30’(9.1 m) Cable 4
1” (25.4 mm) 14
6
Master Series
Standard Pitch = 8’ (2.4 m) Ratchet Buckles
2” (50.8 mm) 14
Frame Tubing Ratchet Buckles
Item Description Size Color Qty.
B B
183.60 in Stake/Anchors 28
[4663.54 mm] 4 Hip Rafter 21’10.5” (6.6 m) Red 4
BOTTOM OF BASEPLATE
TO TOP OF RIDGE
3 Rafter 16’1” (4.9 m) Green 10 Sidewalls
97.20 in 371.13 in 1 Rafter Bar 14’4” (4.3 m) Red 2 Size Qty.
[2468.75 mm] [9426.70 mm]
BOTTOM OF BASEPLATE OUTSIDE OF BASEPLATE
TO TOP OF EAVE TO OUTSIDE OF BASEPLATE 2 Spreader 14’4” (4.3 m) Red 17 20’ (6.1 m) ---
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION 5 Legs 7’8” (2.3 m) Black 14 30’ (9.1 m) 7
1 2 2AST172 14'4" (4.3 m) - Aluminum Single Tubing
2 17 2AST172 14'4" (4.3 m) - Aluminum Single Tubing
3 10 2AST193 16'1" (4.9 m)- Aluminum Single Tubing 43
4 4 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
A 5 14 2AST92 7'8" (2.3 m) - Aluminum Single Tubing THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
6 4 ACFTC1875X30CAR 3/16'' x 30' (4.8 mm x 9.1 m) Frame Tent Cable with Carabiners. PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
7 4 F01COR Corner Fitting CELINA, OH 45822
8 10 F02STRING Side Tee with Ring Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
9 2 F056WC 6 Way Crown Fitting DRAWN BY: TOLERANCE:
10 2 F08RC Ridge Crown Fitting PART NUMBER: Leslie +/-1 in
[+/-25.40 mm]
11 4 F12RSB Single Tube Ridge Support Bracket Fitting 30'x75' Master Series Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
12 14 F39MB Master Tent Base Plate Fitting inches [mm] 1 C 1 / 100 8/10/2017
