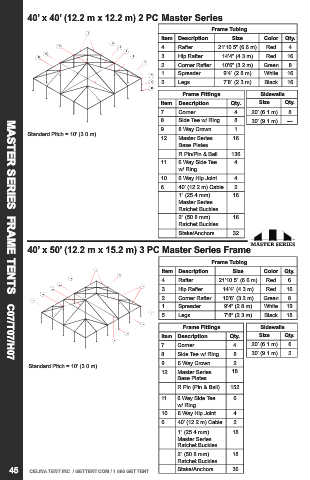

Page 46 - layouthandbook

40’ x 40’ (12.2 m x 12.2 m) 2 PC Master Series
4 3 2 1
Frame Tubing
1
Item Description Size Color Qty.
8
D 9 4 D Rafter 21’10.5” (6.6 m) Red 4
4
6
11 3 Hip Rafter 14’4” (4.3 m) Red 16
10 2
3
2 Corner Rafter 10’6” (3.2 m) Green 8
1 Spreader 9’4” (2.8 m) White 16
489.96 in 7
[12444.89 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 5 5 Legs 7’8” (2.3 m) Black 16
12
Frame Fittings Sidewalls
C C
Item Description Qty. Size Qty.
7 Corner 4 20’ (6.1 m) 8
8 Side Tee w/ Ring 8 30’ (9.1 m) ---
9 8 Way Crown 1
Standard Pitch = 10’ (3.0 m)
12 Master Series 16
218.15 in Base Plates
[5541.01 mm]
BOTTOM OF BASEPLATE
B 97.20 in TO TOP OF RIDGE B R Pin/Pin & Bail 136
[2468.75 mm]
BOTTOM OF BASEPLATE
TO TOP OF EAVE 11 6 Way Side Tee 4
491.13 in w/ Ring
[12474.70 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 10 6 Way Hip Joint 4
6 40’ (12.2 m) Cable 2
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 16 2AST112 9'4" (2.8 m) - Aluminum Single Tubing 1” (25.4 mm) 16
2 8 2AST126 10'6" (3.2 m) - Aluminum Single Tubing
3 16 2AST172 14'4" (4.3 m) - Aluminum Single Tubing
4 4 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube Master Series
5 16 2AST92 7'8" (2.3 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
6 2 ACFTC1875X40CAR 3/16'' x 40' (4.8 mm x 12.2 m) Frame Tent Cable with Carabiners. PRODUCT DESCRIPTION: Ratchet Buckles
7 4 F01COR Corner Fitting 5373 STATE ROUTE 29
CELINA, OH 45822
8 8 F02STRING Side Tee with Ring Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
9 1 F048WC 8 Way Crown Fitting DRAWN BY: TOLERANCE: 2” (50.8 mm) 16
10 4 F106WHJ 6 Way Hip Joint Fitting PART NUMBER: Leslie +/-1 in
[+/-25.40 mm]
11 4 F116WSTRING 6 Way Side Tee with Ring Fitting 40'x40' Master Series Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU: Ratchet Buckles
12 16 F39MB Master Tent Base Plate Fitting inches [mm] 1 C 1 / 80 8/10/2017
4 3 2 1
Stake/Anchors 32
40’ x 50’ (12.2 m x 15.2 m) 3 PC Master Series Frame
4 3 2 1
Frame Tubing
Item Description Size Color Qty.
1
D 8 D
9 4 Rafter 21’10.5” (6.6 m) Red 6
11 3
4 3 Hip Rafter 14’4” (4.3 m) Red 16
10
2 Corner Rafter 10’6” (3.2 m) Green 8
2
609.96 in 1 Spreader 9’4” (2.8 m) White 19
[15492.89 mm]
OUTSIDE OF BASEPLATE
5 Legs 7’8” (2.3 m) Black 18
TO OUTSIDE OF BASEPLATE 7
5
C C Frame Fittings Sidewalls
12
Item Description Qty. Size Qty.
6
7 Corner 4 20’ (6.1 m) 6
8 Side Tee w/ Ring 8 30’ (9.1 m) 2
9 6 Way Crown 2
MASTER SERIES FRAME TENTS C07/T07/H07
Standard Pitch = 10’ (3.0 m)
218.10 in
[5539.82 mm] 12 Master Series 18
BOTTOM OF BASEPLATE
B 97.20 in TO TOP OF RIDGE B Base Plates
[2468.75 mm]
BOTTOM OF BASEPLATE
TO TOP OF EAVE
R Pin (Pin & Bail) 152
491.13 in
[12474.70 mm]
OUTSIDE OF BASEPLATE 11 6 Way Side Tee 6
TO OUTSIDE OF BASEPLATE
w/ Ring
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 19 2AST112 9'4" (2.8 m) - Aluminum Single Tubing 10 6 Way Hip Joint 4
2 8 2AST126 10'6" (3.2 m) - Aluminum Single Tubing
3 16 2AST172 14'4" (4.3 m) - Aluminum Single Tubing
4 6 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube 6 40’ (12.2 m) Cable 2
5 18 2AST92 7'8" (2.3 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
6 2 ACFTC1875X40CAR 3/16'' x 40' (4.8 mm x 12.2 m) Frame Tent Cable with Carabiners.
7 4 F01COR Corner Fitting PRODUCT DESCRIPTION: 5373 STATE ROUTE 29 1” (25.4 mm) 18
CELINA, OH 45822
8 8 F02STRING Side Tee with Ring Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
9 2 F056WC 6 Way Crown Fitting DRAWN BY: TOLERANCE:
+/-1 in
10 4 F106WHJ 6 Way Hip Joint Fitting PART NUMBER: Leslie [+/-25.40 mm] Master Series
11 6 F116WSTRING 6 Way Side Tee with Ring Fitting 40'x50' Master Series Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
12 18 F39MB Master Tent Base Plate Fitting inches [mm] 1 C 1 / 90 8/10/2017 Ratchet Buckles
4 3 2 1
2” (50.8 mm) 18
Ratchet Buckles
45 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT Stake/Anchors 36
