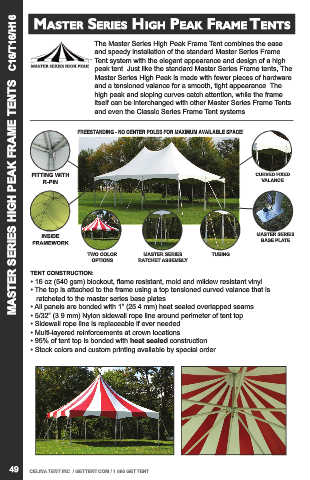

MASTER SERIES HIGH PEAK FRAME TENTS C16/T16/H16
MASTEr SErIES HIGH pEAK frAME TENTS
The Master Series High Peak Frame Tent combines the ease
and speedy installation of the standard Master Series Frame
Tent system with the elegant appearance and design of a high
peak tent. Just like the standard Master Series Frame tents, The
Master Series High Peak is made with fewer pieces of hardware
and a tensioned valance for a smooth, tight appearance. The
high peak and sloping curves catch attention, while the frame
itself can be interchanged with other Master Series Frame Tents
and even the Classic Series Frame Tent systems.
FREESTANDING - NO CENTER POLES FOR MAXIMUM AVAILABLE SPACE!
FITTING WITH CURVED FIXED
R-PIN VALANCE
INSIDE MASTER SERIES
FRAMEWORK BASE PLATE
TWO COLOR MASTER SERIES TUBING
OPTIONS RATCHET ASSEMBLY
TENT CONSTRUCTION:
• 16 oz (540 gsm) blockout, flame resistant, mold and mildew resistant vinyl
• The top is attached to the frame using a top tensioned curved valance that is
ratcheted to the master series base plates
• All panels are bonded with 1” (25.4 mm) heat sealed overlapped seams
• 5/32” (3.9 mm) Nylon sidewall rope line around perimeter of tent top
• Sidewall rope line is replaceable if ever needed
• Multi-layered reinforcements at crown locations
• 95% of tent top is bonded with heat sealed construction
• Stock colors and custom printing available by special order
