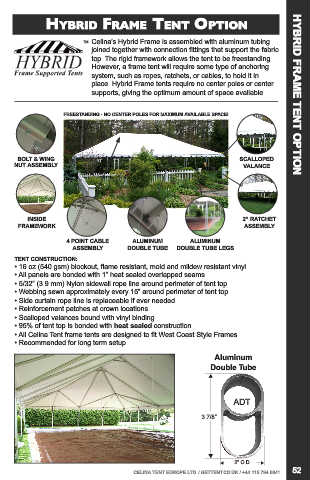

Hybrid Frame TenT OpTiOn

Celina’s Hybrid Frame is assembled with aluminum tubing
joined together with connection fittings that support the fabric
top. The rigid framework allows the tent to be freestanding.
However, a frame tent will require some type of anchoring
system, such as ropes, ratchets, or cables, to hold it in
place. Hybrid Frame tents require no center poles or center
supports, giving the optimum amount of space available. HYBRID FRAME TENT OPTION

FREESTANDING - NO CENTER POLES FOR MAXIMUM AVAILABLE SPACE!

BOLT & WING SCALLOPED
NUT ASSEMBLY VALANCE

INSIDE 2” RATCHET
FRAMEWORK ASSEMBLY

4 POINT CABLE ALUMINUM ALUMINUM
ASSEMBLY DOUBLE TUBE DOUBLE TUBE LEGS
TENT CONSTRUCTION:
• 16 oz (540 gsm) blockout, flame resistant, mold and mildew resistant vinyl
• All panels are bonded with 1” heat sealed overlapped seams
• 5/32” (3.9 mm) Nylon sidewall rope line around perimeter of tent top
• Webbing sewn approximately every 15” around perimeter of tent top
• Side curtain rope line is replaceable if ever needed
• Reinforcement patches at crown locations
• Scalloped valances bound with vinyl binding
• 95% of tent top is bonded with heat sealed construction
• All Celina Tent frame tents are designed to fit West Coast Style Frames
• Recommended for long term setup
Aluminum
Double Tube

ADT

3 7/8”

2” O.D.
