Size
20’ (6.1 m)
30’ (9.1 m)
SIDEWALLS
-
5
Qty.
Stakes/Anchors
Ratchet Buckles
Standard Base Plate
2.5” (6.35 cm) Pin & Bail
Traditional 6 Way Crown
Traditional Corner Fitting
Adjustable Double Tube Brace

Side Tee w/ Welded Ring for Cable Attachment

4.5” (11.4 cm) Bolt & Wing Nut Assembly for Double Tube
4 Point Cable Assembly for 30’ (9.1 m) Wide Hybrid Frame
4
6
2
2
10
10
45
10
27
12
Qty.

6’8” (2 m) - 2” (5 cm) Double Tube
FRAME TUBING
14’4” (4.3 m) - 2” (5 cm) Single Tube
16’1” (4.9 m) - 2” (5 cm) Double Tube
21’10.5” (6.6 m) - 2” (5 cm) Double Tube
HYBRID FRAME TENT OPTION
Red
Red
Green
Color
Brown
4
6
10
11
Qty

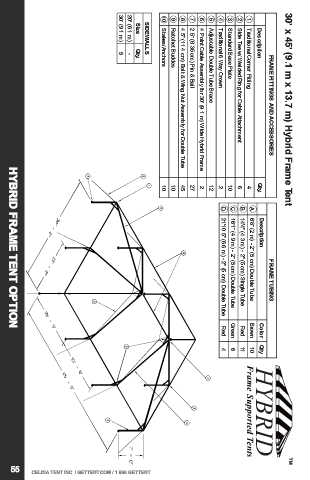

55 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT 10 9 8 7 6 5 4 D 3 C 2 B 1 A Description Description FRAME FITTINGS AND ACCESSORIES 30’ x 45’ (9.1 m x 13.7 m) Hybrid Frame Tent
