Size
20’ (6.1 m)
30’ (9.1 m)
SIDEWALLS
-
6
Qty.
Stakes/Anchors
Ratchet Buckles
Standard Base Plate
Traditional Ridge Crown
2.5” (6.35 cm) Pin & Bail
Traditional 6 Way Crown
Traditional Corner Fitting
Adjustable Double Tube Brace

Side Tee w/ Welded Ring for Cable Attachment

4.5” (11.4 cm) Bolt & Wing Nut Assembly for Double Tube
4 Point Cable Assembly for 30’ (9.1 m) Wide Hybrid Frame
1
4
2
3
8
12
15
12
53
33
12
Qty.

6’8” (2 m) - 2” (5 cm) Double Tube
FRAME TUBING
14’4” (4.3 m) - 2” (5 cm) Single Tube
16’1” (4.9 m) - 2” (5 cm) Double Tube
21’10.5” (6.6 m) - 2” (5 cm) Double Tube

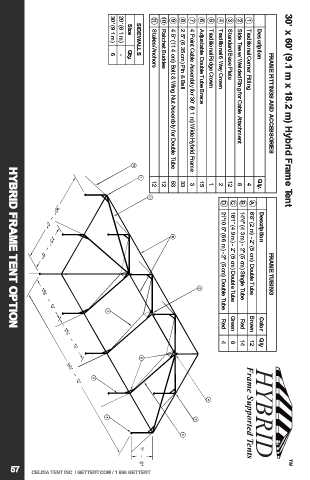

HYBRID FRAME TENT OPTION
Red
Red
Color
Brown
Green
8
4
14
12
Qty

57 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT 11 10 9 8 7 6 5 4 D 3 C 2 B 1 A Description Description FRAME FITTINGS AND ACCESSORIES 30’ x 60’ (9.1 m x 18.2 m) Hybrid Frame Tent
