Page 66 - layouthandbook

13
12
Size
30’ (9.1 m)
20’ (6.1 m)
SIDEWALLS
8
4
Qty.
Ratchet Buckles
Stakes / Anchors
Standard Base Plate
Traditional Ridge Crown
2.5” (6.35 cm) Pin & Bail
Traditional 6 Way Crown
Traditional Corner Fitting
Traditional 6 Way Hip Joint
Adjustable Double Tube Brace
Side Tee w/ Welded Ring for Cable Attachment

6 Way Side Tee w/ Welded Ring for Cable Attachment
4.5” (11.4 cm) Bolt & Wing Nut Assembly for Double Tube
4 Point Cable Assembly for 40’ (12.1 m) Wide Hybrid Frame
4
2
5
4
7
6
28
28
28
18
89
21
125
Qty.

6’8” (2 m) - 2” (5 cm) Double Tube
FRAME TUBING
9’4” (2.8 m) - 2” (5 cm) Single Tube
10’6” (3.2 m) -2” (5 cm) Single Tube
14’4” (4.3 m) - 2” (5 cm) Double Tube
21’10.5” (6.6 m) - 2” (5 cm) Double Tube
HYBRID FRAME TENT OPTION
Red
Red
White
White
Color
Brown
8
16
16
34
28
Qty

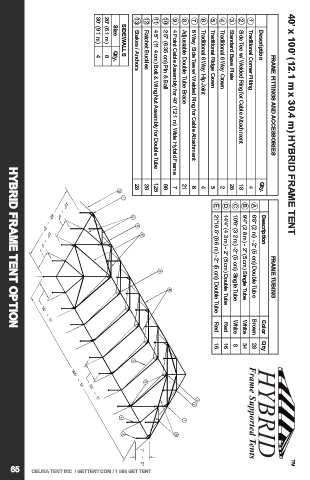

65 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT 11 10 9 8 7 6 5 E 4 D 3 C 2 B 1 A Description Description FRAME FITTINGS AND ACCESSORIES 40’ x 100’ (12.1 m x 30.4 m) HYBRID FRAME TENT
