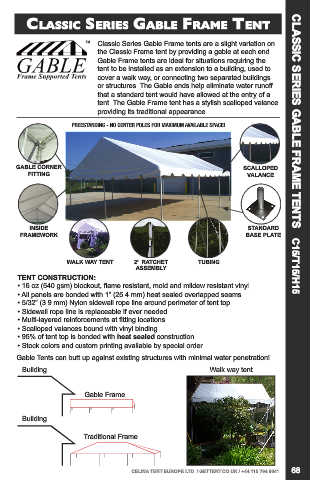

ClassiC series Gable Frame TenT

Classic Series Gable Frame tents are a slight variation on
the Classic Frame tent by providing a gable at each end.
Gable Frame tents are ideal for situations requiring the
tent to be installed as an extension to a building, used to
cover a walk way, or connecting two separated buildings
or structures. The Gable ends help eliminate water runoff
that a standard tent would have allowed at the entry of a
tent. The Gable Frame tent has a stylish scalloped valance
providing its traditional appearance.

FREESTANDING - NO CENTER POLES FOR MAXIMUM AVAILABLE SPACE! CLASSIC SERIES GABLE FRAME TENTS

GABLE CORNER SCALLOPED CLASSIC SERIES GABLE FRAME TENTS C15/T15/H15
FITTING VALANCE

INSIDE STANDARD
FRAMEWORK BASE PLATE

WALK WAY TENT 2” RATCHET TUBING
ASSEMBLY
TENT CONSTRUCTION:
• 16 oz (540 gsm) blockout, flame resistant, mold and mildew resistant vinyl
• All panels are bonded with 1” (25.4 mm) heat sealed overlapped seams
• 5/32” (3.9 mm) Nylon sidewall rope line around perimeter of tent top
• Sidewall rope line is replaceable if ever needed
• Multi-layered reinforcements at fitting locations
• Scalloped valances bound with vinyl binding
• 95% of tent top is bonded with heat sealed construction
• Stock colors and custom printing available by special order
Gable Tents can butt up against existing structures with minimal water penetration!
Building Walk way tent

Gable Frame

Building

Traditional Frame

68
