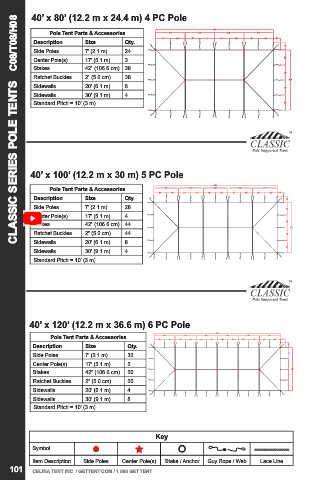

40’ x 80’ (12.2 m x 24.4 m) 4 PC Pole
CLASSIC SERIES POLE TENTS C08/T08/H08
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 24
Center Pole(s) 17’ (5.1 m) 3
Stakes 42” (106.6 cm) 38
Ratchet Buckles 2” (5.0 cm) 38
Sidewalls 20’ (6.1 m) 6
Sidewalls 30’ (9.1 m) 4
Standard Pitch = 10’ (3 m)

40’ x 100’ (12.2 m x 30 m) 5 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 28
Center Pole(s) 17’ (5.1 m) 4
Stakes 42” (106.6 cm) 44
Ratchet Buckles 2” (5.0 cm) 44
Sidewalls 20’ (6.1 m) 8
Sidewalls 30’ (9.1 m) 4
Standard Pitch = 10’ (3 m)

40’ x 120’ (12.2 m x 36.6 m) 6 PC Pole
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 32
Center Pole(s) 17’ (5.1 m) 5
Stakes 42” (106.6 cm) 50
Ratchet Buckles 2” (5.0 cm) 50
Sidewalls 20’ (6.1 m) 4
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 10’ (3 m)

Key
Symbol
Item Description Side Poles Center Pole(s) Stake / Anchor Guy Rope / Web Lace Line
