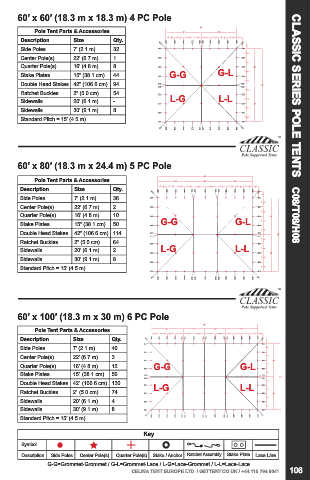

60’ x 60’ (18.3 m x 18.3 m) 4 PC Pole
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 32
Center Pole(s) 22’ (6.7 m) 1
Quarter Pole(s) 16’ (4.8 m) 8
Stake Plates 15” (38.1 cm) 44 G-G G-L
Double Head Stakes 42” (106.6 cm) 94
Ratchet Buckles 2” (5.0 cm) 54 L-G L-L
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 15’ (4.5 m) CLASSIC SERIES POLE TENTS C08/T08/H08

60’ x 80’ (18.3 m x 24.4 m) 5 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 36
Center Pole(s) 22’ (6.7 m) 2
Quarter Pole(s) 16’ (4.8 m) 10
Stake Plates 15” (38.1 cm) 50 G-G G-L
Double Head Stakes 42” (106.6 cm) 114
Ratchet Buckles 2” (5.0 cm) 64 L-G L-L
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 15’ (4.5 m)

60’ x 100’ (18.3 m x 30 m) 6 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 40
Center Pole(s) 22’ (6.7 m) 3
Quarter Pole(s) 16’ (4.8 m) 12 G-G G-L
Stake Plates 15” (38.1 cm) 56
Double Head Stakes 42” (106.6 cm) 130 L-G L-L
Ratchet Buckles 2” (5.0 cm) 74
Sidewalls 20’ (6.1 m) 4
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 15’ (4.5 m)
Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041 106
