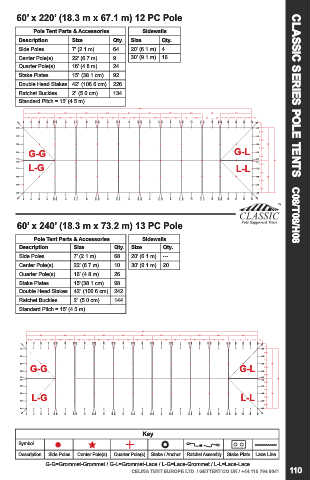

60’ x 220’ (18.3 m x 67.1 m) 12 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 64 20’ (6.1 m) 4
Center Pole(s) 22’ (6.7 m) 9 30’ (9.1 m) 16
Quarter Pole(s) 16’ (4.8 m) 24
Stake Plates 15” (38.1 cm) 92
Double Head Stakes 42” (106.6 cm) 226
Ratchet Buckles 2” (5.0 cm) 134
Standard Pitch = 15’ (4.5 m)
220’ CLASSIC SERIES POLE TENTS C08/T08/H08

G-G G-L
L-G L-L

60’ x 240’ (18.3 m x 73.2 m) 13 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 68 20’ (6.1 m) ---
Center Pole(s) 22’ (6.7 m) 10 30’ (9.1 m) 20
Quarter Pole(s) 16’ (4.8 m) 26
Stake Plates 15”(38.1 cm) 98
Double Head Stakes 42” (106.6 cm) 242
Ratchet Buckles 2” (5.0 cm) 144
Standard Pitch = 15’ (4.5 m)

240’

G-G G-L

L-G L-L

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041 110
