P. 110

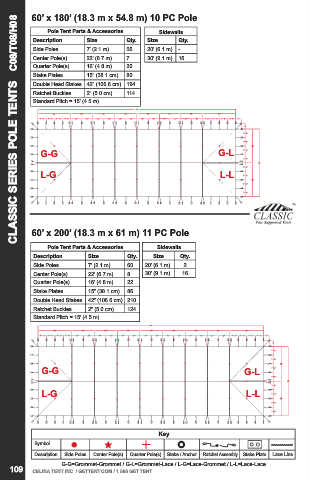

60’ x 180’ (18.3 m x 54.8 m) 10 PC Pole
CLASSIC SERIES POLE TENTS C08/T08/H08
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 56 20’ (6.1 m) -
Center Pole(s) 22’ (6.7 m) 7 30’ (9.1 m) 16
Quarter Pole(s) 16’ (4.8 m) 20
Stake Plates 15” (38.1 cm) 80
Double Head Stakes 42” (106.6 cm) 194
Ratchet Buckles 2” (5.0 cm) 114
Standard Pitch = 15’ (4.5 m)
180’
G-G G-L
L-G L-L
60’ x 200’ (18.3 m x 61 m) 11 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 60 20’ (6.1 m) 2
Center Pole(s) 22’ (6.7 m) 8 30’ (9.1 m) 16
Quarter Pole(s) 16’ (4.8 m) 22
Stake Plates 15” (38.1 cm) 86
Double Head Stakes 42” (106.6 cm) 210
Ratchet Buckles 2” (5.0 cm) 124
Standard Pitch = 15’ (4.5 m)
200’
G-G G-L
L-G L-L
Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
109 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
