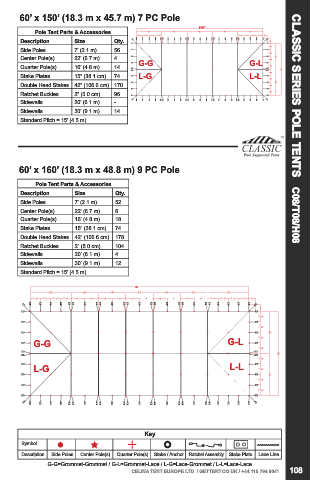

60’ x 150’ (18.3 m x 45.7 m) 7 PC Pole
Pole Tent Parts & Accessories 150”
Description Size Qty.
Side Poles 7’ (2.1 m) 56
Center Pole(s) 22’ (6.7 m) 4 G-G G-L
Quarter Pole(s) 16’ (4.8 m) 14
Stake Plates 15” (38.1 cm) 74 L-G L-L
Double Head Stakes 42” (106.6 cm) 170
Ratchet Buckles 2” (5.0 cm) 96
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 14
Standard Pitch = 15’ (4.5 m) CLASSIC SERIES POLE TENTS C08/T08/H08
60’ x 160’ (18.3 m x 48.8 m) 9 PC Pole
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 52
Center Pole(s) 22’ (6.7 m) 6
Quarter Pole(s) 16’ (4.8 m) 18
Stake Plates 15” (38.1 cm) 74
Double Head Stakes 42” (106.6 cm) 178
Ratchet Buckles 2” (5.0 cm) 104
Sidewalls 20’ (6.1 m) 4
Sidewalls 30’ (9.1 m) 12
Standard Pitch = 15’ (4.5 m)
160”
G-G G-L
L-G L-L
Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
