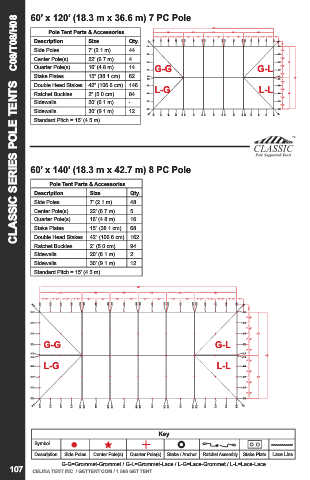

60’ x 120’ (18.3 m x 36.6 m) 7 PC Pole
CLASSIC SERIES POLE TENTS C08/T08/H08
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 44
Center Pole(s) 22’ (6.7 m) 4
Quarter Pole(s) 16’ (4.8 m) 14 G-G G-L
Stake Plates 15” (38.1 cm) 62
Double Head Stakes 42” (106.6 cm) 146 L-G L-L
Ratchet Buckles 2” (5.0 cm) 84
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 12
Standard Pitch = 15’ (4.5 m)

60’ x 140’ (18.3 m x 42.7 m) 8 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 48
Center Pole(s) 22’ (6.7 m) 5
Quarter Pole(s) 16’ (4.8 m) 16
Stake Plates 15” (38.1 cm) 68
Double Head Stakes 42” (106.6 cm) 162
Ratchet Buckles 2” (5.0 cm) 94
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 12
Standard Pitch = 15’ (4.5 m)

140”

G-G G-L

L-G L-L

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
107 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
