P. 113

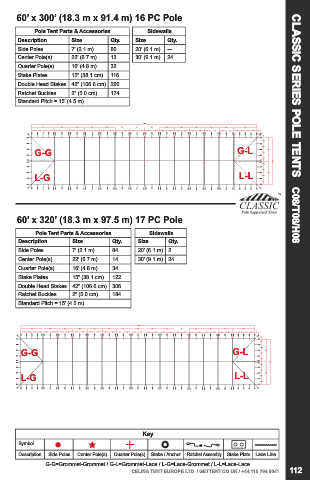

60’ x 300’ (18.3 m x 91.4 m) 16 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 80 20’ (6.1 m) ---
Center Pole(s) 22’ (6.7 m) 13 30’ (9.1 m) 24
Quarter Pole(s) 16’ (4.8 m) 32
Stake Plates 15” (38.1 cm) 116
Double Head Stakes 42” (106.6 cm) 290
Ratchet Buckles 2” (5.0 cm) 174
Standard Pitch = 15’ (4.5 m)
300’ CLASSIC SERIES POLE TENTS C08/T08/H08
G-G G-L
L-G L-L
60’ x 320’ (18.3 m x 97.5 m) 17 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 84 20’ (6.1 m) 2
Center Pole(s) 22’ (6.7 m) 14 30’ (9.1 m) 24
Quarter Pole(s) 16’ (4.8 m) 34
Stake Plates 15” (38.1 cm) 122
Double Head Stakes 42” (106.6 cm) 306
Ratchet Buckles 2” (5.0 cm) 184
Standard Pitch = 15’ (4.5 m)
320’
G-G G-L
L-G L-L
Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041 112
