P. 114

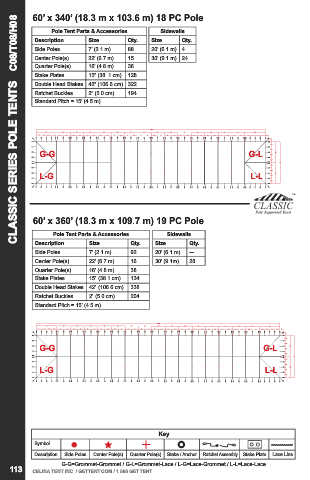

60’ x 340’ (18.3 m x 103.6 m) 18 PC Pole
CLASSIC SERIES POLE TENTS C08/T08/H08
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 88 20’ (6.1 m) 4
Center Pole(s) 22’ (6.7 m) 15 30’ (9.1 m) 24
Quarter Pole(s) 16’ (4.8 m) 36
Stake Plates 15” (38. 1 cm) 128
Double Head Stakes 42” (106.6 cm) 322
Ratchet Buckles 2” (5.0 cm) 194
Standard Pitch = 15’ (4.5 m)
340’
G-G G-L
L-G L-L
60’ x 360’ (18.3 m x 109.7 m) 19 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 92 20’ (6.1 m) ---
Center Pole(s) 22’ (6.7 m) 16 30’ (9.1m) 28
Quarter Pole(s) 16’ (4.8 m) 38
Stake Plates 15” (38.1 cm) 134
Double Head Stakes 42” (106.6 cm) 338
Ratchet Buckles 2” (5.0 cm) 204
Standard Pitch = 15’ (4.5 m)
360’
G-G G-L
L-G L-L
Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
113 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
