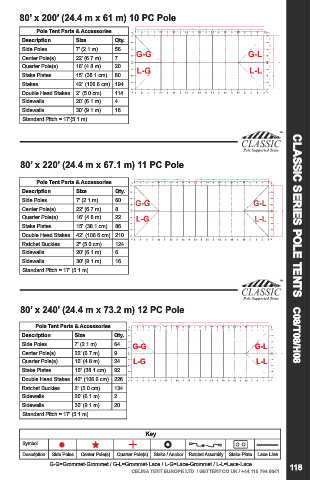

80’ x 200’ (24.4 m x 61 m) 10 PC Pole
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 56
Center Pole(s) 22’ (6.7 m) 7
Quarter Pole(s) 16’ (4.8 m) 20
Stake Plates 15” (38.1 cm) 80
Stakes 42” (106.6 cm) 194
Double Head Stakes 2” (5.0 cm) 114
Sidewalls 20’ (6.1 m) 4
Sidewalls 30’ (9.1 m) 16
Standard Pitch = 17’(5.1 m)

80’ x 220’ (24.4 m x 67.1 m) 11 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 60
Center Pole(s) 22’ (6.7 m) 8
Quarter Pole(s) 16’ (4.8 m) 22
Stake Plates 15” (38.1 cm) 86
Double Head Stakes 42” (106.6 cm) 210
Ratchet Buckles 2” (5.0 cm) 124
Sidewalls 20’ (6.1 m) 6 CLASSIC SERIES POLE TENTS C08/T08/H08
Sidewalls 30’ (9.1 m) 16
Standard Pitch = 17’ (5.1 m)

80’ x 240’ (24.4 m x 73.2 m) 12 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 64 G-G G-L
Center Pole(s) 22’ (6.7 m) 9
Quarter Pole(s) 16’ (4.8 m) 24 L-G L-L
Stake Plates 15” (38.1 cm) 92
Double Head Stakes 42” (106.6 cm) 226
Ratchet Buckles 2” (5.0 cm) 134
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 20
Standard Pitch = 17’ (5.1 m)
Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace 118
