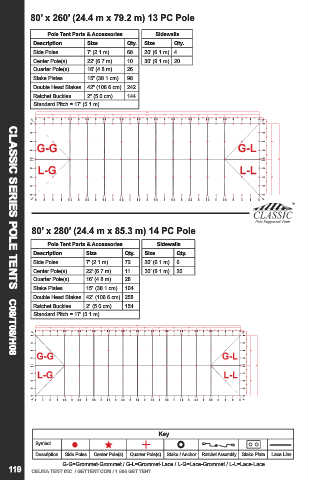

80’ x 260’ (24.4 m x 79.2 m) 13 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 68 20’ (6.1 m) 4
Center Pole(s) 22’ (6.7 m) 10 30’ (9.1 m) 20
Quarter Pole(s) 16’ (4.8 m) 26
Stake Plates 15” (38.1 cm) 98
Double Head Stakes 42” (106.6 cm) 242
Ratchet Buckles 2” (5.0 cm) 144
Standard Pitch = 17’ (5.1 m)

80’ x 280’ (24.4 m x 85.3 m) 14 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 72 20’ (6.1 m) 6
Center Pole(s) 22’ (6.7 m) 11 30’ (9.1 m) 20
Quarter Pole(s) 16’ (4.8 m) 28
Stake Plates 15” (38.1 cm) 104
Double Head Stakes 42” (106.6 cm) 258
Ratchet Buckles 2” (5.0 cm) 154
Standard Pitch = 17’ (5.1 m)

CLASSIC SERIES POLE TENTS C08/T08/H08

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
