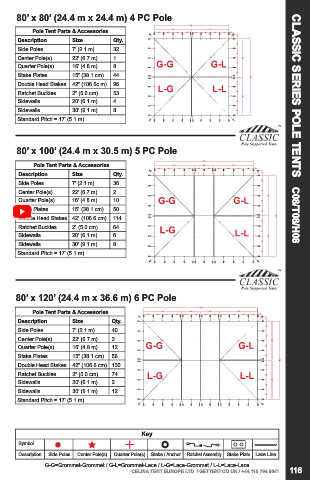

80’ x 80’ (24.4 m x 24.4 m) 4 PC Pole
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 32
Center Pole(s) 22’ (6.7 m) 1
Quarter Pole(s) 16’ (4.8 m) 8
Stake Plates 15” (38.1 cm) 44
Double Head Stakes 42” (106.6c m) 96
Ratchet Buckles 2” (5.0 cm) 53
Sidewalls 20’ (6.1 m) 4
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 17’ (5.1 m) CLASSIC SERIES POLE TENTS C08/T08/H08

80’ x 100’ (24.4 m x 30.5 m) 5 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 36
Center Pole(s) 22’ (6.7 m) 2
Quarter Pole(s) 16’ (4.8 m) 10
Stake Plates 15” (38.1 cm) 50
Double Head Stakes 42” (106.6 cm) 114
Ratchet Buckles 2” (5.0 cm) 64
Sidewalls 20’ (6.1 m) 6
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 17’ (5.1 m)

80’ x 120’ (24.4 m x 36.6 m) 6 PC Pole

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 40
Center Pole(s) 22’ (6.7 m) 3
Quarter Pole(s) 16’ (4.8 m) 12
Stake Plates 15” (38.1 cm) 56
Double Head Stakes 42” (106.6 cm) 130
Ratchet Buckles 2” (5.0 cm) 74
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 12
Standard Pitch = 17’ (5.1 m)

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
