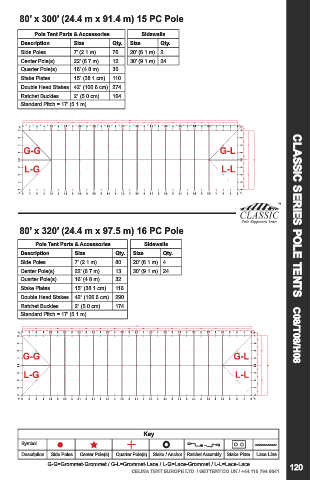

Page 121 - layouthandbook

80’ x 300’ (24.4 m x 91.4 m) 15 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 76 20’ (6.1 m) 2
Center Pole(s) 22’ (6.7 m) 12 30’ (9.1 m) 24
Quarter Pole(s) 16’ (4.8 m) 30
Stake Plates 15” (38.1 cm) 110
Double Head Stakes 42” (106.6 cm) 274
Ratchet Buckles 2” (5.0 cm) 164
Standard Pitch = 17’ (5.1 m)

80’ x 320’ (24.4 m x 97.5 m) 16 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty. CLASSIC SERIES POLE TENTS C08/T08/H08
Side Poles 7’ (2.1 m) 80 20’ (6.1 m) 4
Center Pole(s) 22’ (6.7 m) 13 30’ (9.1 m) 24
Quarter Pole(s) 16’ (4.8 m) 32
Stake Plates 15” (38.1 cm) 116
Double Head Stakes 42” (106.6 cm) 290
Ratchet Buckles 2” (5.0 cm) 174
Standard Pitch = 17’ (5.1 m)

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace 120
