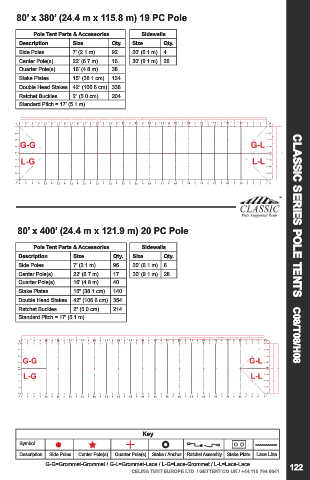

80’ x 380’ (24.4 m x 115.8 m) 19 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 92 20’ (6.1 m) 4
Center Pole(s) 22’ (6.7 m) 16 30’ (9.1 m) 28
Quarter Pole(s) 16’ (4.8 m) 38
Stake Plates 15” (38.1 cm) 134
Double Head Stakes 42” (106.6 cm) 338
Ratchet Buckles 2” (5.0 cm) 204
Standard Pitch = 17’ (5.1 m)

80’ x 400’ (24.4 m x 121.9 m) 20 PC Pole

Pole Tent Parts & Accessories Sidewalls CLASSIC SERIES POLE TENTS C08/T08/H08
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 96 20’ (6.1 m) 6
Center Pole(s) 22’ (6.7 m) 17 30’ (9.1 m) 28
Quarter Pole(s) 16’ (4.8 m) 40
Stake Plates 15” (38.1 cm) 140
Double Head Stakes 42” (106.6 cm) 354
Ratchet Buckles 2” (5.0 cm) 214
Standard Pitch = 17’ (5.1 m)

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace 122
