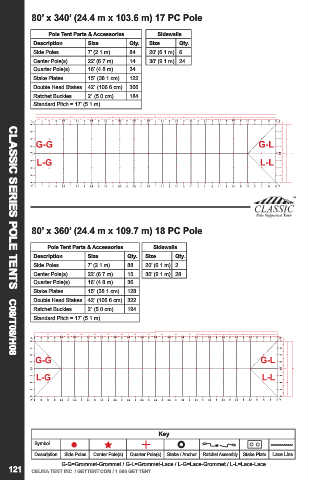

80’ x 340’ (24.4 m x 103.6 m) 17 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 84 20’ (6.1 m) 6
Center Pole(s) 22’ (6.7 m) 14 30’ (9.1 m) 24
Quarter Pole(s) 16’ (4.8 m) 34
Stake Plates 15” (38.1 cm) 122
Double Head Stakes 42” (106.6 cm) 306
Ratchet Buckles 2” (5.0 cm) 184
Standard Pitch = 17’ (5.1 m)

80’ x 360’ (24.4 m x 109.7 m) 18 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 88 20’ (6.1 m) 2
Center Pole(s) 22’ (6.7 m) 15 30’ (9.1 m) 28
Quarter Pole(s) 16’ (4.8 m) 36
Stake Plates 15” (38.1 cm) 128
Double Head Stakes 42” (106.6 cm) 322
Ratchet Buckles 2” (5.0 cm) 194
Standard Pitch = 17’ (5.1 m)

CLASSIC SERIES POLE TENTS C08/T08/H08

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
