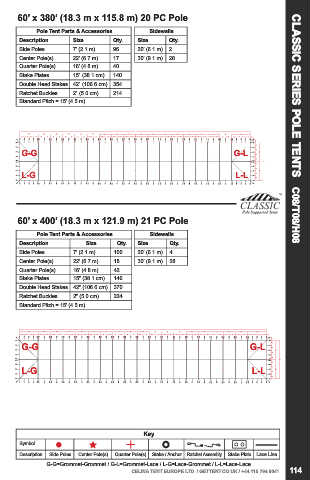

60’ x 380’ (18.3 m x 115.8 m) 20 PC Pole
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 96 20’ (6.1 m) 2
Center Pole(s) 22’ (6.7 m) 17 30’ (9.1 m) 28
Quarter Pole(s) 16’ (4.8 m) 40
Stake Plates 15” (38.1 cm) 140
Double Head Stakes 42” (106.6 cm) 354
Ratchet Buckles 2” (5.0 cm) 214
Standard Pitch = 15’ (4.5 m)

380’ CLASSIC SERIES POLE TENTS C08/T08/H08
G-G G-L

L-G L-L

60’ x 400’ (18.3 m x 121.9 m) 21 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 100 20’ (6.1 m) 4
Center Pole(s) 22’ (6.7 m) 18 30’ (9.1 m) 28
Quarter Pole(s) 16’ (4.8 m) 42
Stake Plates 15” (38.1 cm) 146
Double Head Stakes 42” (106.6 cm) 370
Ratchet Buckles 2” (5.0 cm) 224
Standard Pitch = 15’ (4.5 m)

400’
G-G G-L

L-G L-L

Key
Symbol
Description Side Poles Center Pole(s) Quarter Pole(s) Stake / Anchor Ratchet Assembly Stake Plate Lace Line
G-G=Grommet-Grommet / G-L=Grommet-Lace / L-G=Lace-Grommet / L-L=Lace-Lace
CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041 114
