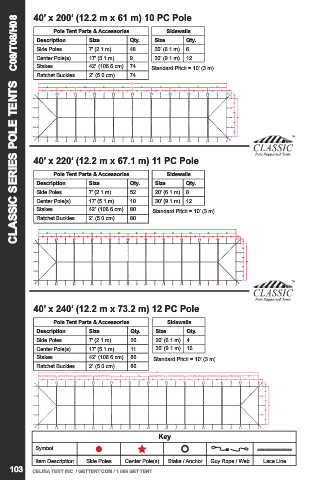

40’ x 200’ (12.2 m x 61 m) 10 PC Pole
CLASSIC SERIES POLE TENTS C08/T08/H08
Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 48 20’ (6.1 m) 6
Center Pole(s) 17’ (5.1 m) 9 30’ (9.1 m) 12
Stakes 42” (106.6 cm) 74 Standard Pitch = 10’ (3 m)
Ratchet Buckles 2” (5.0 cm) 74

40’ x 220’ (12.2 m x 67.1 m) 11 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 52 20’ (6.1 m) 8
Center Pole(s) 17’ (5.1 m) 10 30’ (9.1 m) 12
Stakes 42” (106.6 cm) 80 Standard Pitch = 10’ (3 m)
Ratchet Buckles 2” (5.0 cm) 80

40’ x 240’ (12.2 m x 73.2 m) 12 PC Pole

Pole Tent Parts & Accessories Sidewalls
Description Size Qty. Size Qty.
Side Poles 7’ (2.1 m) 56 20’ (6.1 m) 4
Center Pole(s) 17’ (5.1 m) 11 30’ (9.1 m) 16
Stakes 42” (106.6 cm) 86 Standard Pitch = 10’ (3 m)
Ratchet Buckles 2” (5.0 cm) 86

Key
Symbol
Item Description Side Poles Center Pole(s) Stake / Anchor Guy Rope / Web Lace Line
103 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
