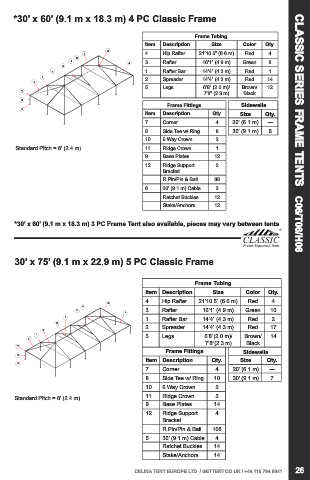

*30’ x 60’ (9.1 m x 18.3 m) 4 PC Classic Frame
4 3 2 1
Frame Tubing
D Item Description Size Color Qty.
D
10
6 4 Hip Rafter 21’10.5” (6.6 m) Red 4
11
1 3 Rafter 16’1” (4.9 m) Green 8
4
12
1 Rafter Bar 14’4” (4.3 m) Red 1
3
727.35 in 8
[18474.82 mm] 2 Spreader 14’4” (4.3 m) Red 14
OUTSIDE OF BASEPLATE 2
TO OUTSIDE OF BASEPLATE
5 Legs 6’8” (2.0 m)/ Brown/ 12
7
7’8” (2.3 m) Black
C C
5
Frame Fittings Sidewalls
9
Item Description Qty. Size Qty.
7 Corner 4 20’ (6.1 m) ---
8 Side Tee w/ Ring 8 30’ (9.1 m) 6 CLASSIC SERIES FRAME TENTS C06/T06/H06
10 6 Way Crown 2
85.20 in
[2163.95 mm]
BOTTOM OF BASEPLATE
TO TOP OF EAVE 171.60 in Standard Pitch = 8’ (2.4 m) 11 Ridge Crown 1
B [4358.74 mm] B
BOTTOM OF BASEPLATE
TO TOP OF RIDGE 9 Base Plates 12
12 Ridge Support 2
367.35 in
[9330.82 mm] Bracket
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
R Pin/Pin & Bail 88
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION 6 30’ (9.1 m) Cable 3
1 1 2AST172 14'4" (4.4 m) - Aluminum Single Tubing
2 14 2AST172 14'4" (4.4 m) - Aluminum Single Tubing Ratchet Buckles 12
3 8 2AST193 16'1" (4.9 m) - Aluminum Single Tubing
4 4 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube
5 12 2AST80 6'8" (2.0 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
6 3 ACFTC1875X30CAR 3/16'' x 30' (4.8 mm x 9.1 m) Frame Tent Cable with Carabiners. PRODUCT DESCRIPTION: Stake/Anchors 12
7 4 F01COR Corner Fitting 5373 STATE ROUTE 29
CELINA, OH 45822
8 8 F02STRING Side Tee with Ring Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
9 12 F03BP Base Plate Fitting DRAWN BY: TOLERANCE:
10 2 F056WC 6 Way Crown Fitting PART NUMBER: Leslie
11 1 F08RC Ridge Crown Fitting *30’ x 60’ (9.1 m x 18.3 m) 3 PC Frame Tent also available, pieces may vary between tents
30'x60' Classic Frame
SCALE:
SHEET NUMBER:
REVISION:
DRAWING UNITS:
DATE:
SHEET SIZE:
WEBSITE SKU:
12 2 F12RSB Single Tube Ridge Support Bracket Fitting inches [mm] 1 C 1 / 103 8/14/2017
4 3 2 1
30’ x 75’ (9.1 m x 22.9 m) 5 PC Classic Frame
4 3 2 1
Frame Tubing
Item Description Size Color Qty.
D 4 D Hip Rafter 21’10.5” (6.6 m) Red 4
10
6
11 3 Rafter 16’1” (4.9 m) Green 10
4
1 1 Rafter Bar 14’4” (4.3 m) Red 2
12
2 Spreader 14’4” (4.3 m) Red 17
3
907.35 in 8 5 Legs 6’8”(2.0 m)/ Brown/ 14
[23046.82 mm] 2
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 7’8”(2.3 m) Black
7
C C Frame Fittings Sidewalls
5
Item Description Qty. Size Qty.
9
7 Corner 4 20’ (6.1 m) ---
8 Side Tee w/ Ring 10 30’ (9.1 m) 7
10 6 Way Crown 2
85.20 in Standard Pitch = 8’ (2.4 m) 11 Ridge Crown 2
[2163.95 mm]
BOTTOM OF BASEPLATE
B TO TOP OF EAVE 171.60 in 9 B Base Plates 14
[4358.74 mm]
BOTTOM OF BASEPLATE
TO TOP OF RIDGE 12 Ridge Support 4
Bracket
367.35 in
[9330.82 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE R Pin/Pin & Bail 108
PARTS LIST 5 30’ (9.1 m) Cable 4
ITEM QTY PART NUMBER DESCRIPTION
1 2 2AST172 14'4" (4.4 m) - Aluminum Single Tubing
2 17 2AST172 14'4" (4.4 m) - Aluminum Single Tubing Ratchet Buckles 14
3 10 2AST193 16'1" (4.9 m) - Aluminum Single Tubing
4 4 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube
A 5 14 2AST80 6'8" (2.0 m) - Aluminum Single Tubing THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A Stake/Anchors 14
6 4 ACFTC1875X30CAR 3/16'' x 30' (4.8 mm x 9.1 m) Frame Tent Cable with Carabiners. PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
7 4 F01COR Corner Fitting CELINA, OH 45822
8 10 F02STRING Side Tee with Ring Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
9 14 F03BP Base Plate Fitting DRAWN BY: TOLERANCE: 26
10 2 F056WC 6 Way Crown Fitting PART NUMBER: Leslie CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041
11 2 F08RC Ridge Crown Fitting 30'x75' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
12 4 F12RSB Single Tube Ridge Support Bracket Fitting inches [mm] 1 C 1 / 115 8/14/2017
