4 3 2 1

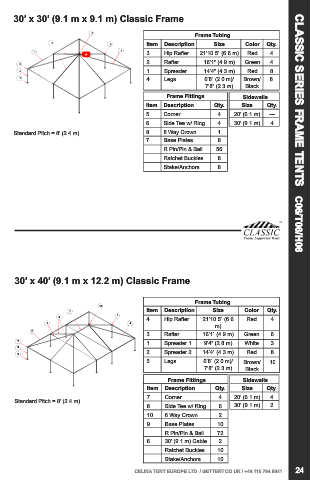

30’ x 30’ (9.1 m x 9.1 m) Classic Frame
D D
8
Frame Tubing
2 6 Item Description Size Color Qty.
3
1 3 Hip Rafter 21’10.5” (6.6 m) Red 4
367.35 in
[9330.72 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 2 Rafter 16’1” (4.9 m) Green 4
5
1 Spreader 14’4” (4.3 m) Red 8
4
7 4 Legs 6’8” (2.0 m)/ Brown/ 8
7’8” (2.3 m) Black
C C
Frame Fittings Sidewalls
Item Description Qty. Size Qty.
5 Corner 4 20’ (6.1 m) ---
6 Side Tee w/ Ring 4 30’ (9.1 m) 4
Standard Pitch = 8’ (2.4 m) 8 8 Way Crown 1 CLASSIC SERIES FRAME TENTS C06/T06/H06
171.68 in
[4360.60 mm] 7 Base Plates 8
BOTTOM OF BASEPLATE
B 85.20 in TO TOP OF RIDGE B
[2163.95 mm] R Pin/Pin & Bail 56
BOTTOM OF BASEPLATE
TO TOP OF EAVE
Ratchet Buckles 8
367.35 in
[9330.82 mm] Stake/Anchors 8
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
A 1 8 2AST172 14'4" (4.4 m) - Aluminum Single Tubing THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
2 4 2AST193 16'1" (4.9 m) - Aluminum Single Tubing PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
3 4 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube CELINA, OH 45822
4 8 2AST80 6'8" (2.0 m) - Aluminum Single Tubing PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
5 4 F01COR Corner Fitting DRAWN BY: TOLERANCE:

6 4 F02STRING Side Tee with Ring Fitting PART NUMBER: Leslie
7 8 F03BP Base Plate Fitting 30'x30' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
8 1 F048WC 8 Way Crown Fitting inches [mm] 1 C 1 / 70 8/14/2017
4 3 2 1
30’ x 40’ (9.1 m x 12.2 m) Classic Frame
4 3 2 1
Frame Tubing
D D
10
1 Item Description Size Color Qty.
3 8
4 Hip Rafter 21’10.5” (6.6 Red 4
6 4
m)
2
487.35 in 3 Rafter 16’1” (4.9 m) Green 6
[12378.82 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 7 1 Spreader 1 9’4” (2.8 m) White 3
5
2 Spreader 2 14’4” (4.3 m) Red 8
9
C 5 C Legs 6’8” (2.0 m)/ Brown/ 10
7’8” (2.3 m) Black
Frame Fittings Sidewalls
Item Description Qty. Size Qty.
7 Corner 4 20’ (6.1 m) 4
Standard Pitch = 8’ (2.4 m)
8 Side Tee w/ Ring 6 30’ (9.1 m) 2
171.60 in 10 6 Way Crown 2
[4358.74 mm]
B BOTTOM OF BASEPLATE B
85.20 in TO TOP OF RIDGE
[2163.95 mm] 9 Base Plates 10
BOTTOM OF BASEPLATE
TO TOP OF EAVE
R Pin/Pin & Bail 72
367.35 in
[9330.82 mm] 6 30’ (9.1 m) Cable 2
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
Ratchet Buckles 10
Stake/Anchors 10
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 3 2AST112 9'4" (2.8 m) - Aluminum Single Tubing 24
2 8 2AST172 14'4" (4.4 m) - Aluminum Single Tubing CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041
A 3 6 2AST193 16'1" (4.9 m) - Aluminum Single Tubing THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
4 4 2AST262 21' 10.5" (6.7 m) Aluminum Single Tube PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
5 10 2AST80 6'8" (2.0 m) - Aluminum Single Tubing CELINA, OH 45822
6 2 ACFTC1875X30CAR 3/16'' x 30' (4.8 mm x 9.1 m) Frame Tent Cable with Carabiners. PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
7 4 F01COR Corner Fitting DRAWN BY: TOLERANCE:

8 6 F02STRING Side Tee with Ring Fitting PART NUMBER: Leslie
DATE:
9 10 F03BP Base Plate Fitting 30'x40' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: WEBSITE SKU:
10 2 F056WC 6 Way Crown Fitting inches [mm] 1 C 1 / 75 8/14/2017
