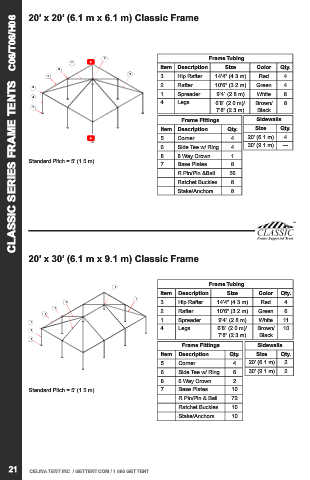

20’ x 20’ (6.1 m x 6.1 m) Classic Frame
CLASSIC SERIES FRAME TENTS C06/T06/H06
4 3 2 1

D D
8 Frame Tubing
2
Item Description Size Color Qty.
6
3
1 3 Hip Rafter 14’4” (4.3 m) Red 4
247.35 in
[6282.63 mm] 2 Rafter 10’6” (3.2 m) Green 4
OUTSIDE OF BASEPLATE 5
TO OUTSIDE OF BASEPLATE
1 Spreader 9’4” (2.8 m) White 8
4
4 Legs 6’8” (2.0 m)/ Brown/ 8
7’8” (2.3 m) Black
7
Frame Fittings Sidewalls
C C
Item Description Qty. Size Qty.
5 Corner 4 20’ (6.1 m) 4
6 Side Tee w/ Ring 4 30’ (9.1 m) ---
8 8 Way Crown 1
Standard Pitch = 5’ (1.5 m)
7 Base Plates 8
142.41 in R Pin/Pin &Bail 56
[3617.30 mm]
BOTTOM OF BASEPLATE
85.20 in
B [2163.95 mm] TO TOP OF RIDGE B Ratchet Buckles 8
BOTTOM OF BASEPLATE
TO TOP OF EAVE Stake/Anchors 8
247.35 in
[6282.82 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 8 2AST112 9'4" (2.8 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
2 4 2AST126 10'6" (3.2 m) - Aluminum Single Tubing
3 4 2AST172 14'4" (4.4 m) - Aluminum Single Tubing PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
CELINA, OH 45822
4 8 2AST80 6'8" (2.0 m) - Aluminum Single Tubing PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
5 4 F01COR Corner Fitting 20’ x 30’ (6.1 m x 9.1 m) Classic Frame
DRAWN BY:
TOLERANCE:
Leslie
6 4 F02STRING 4 Side Tee with Ring Fitting 3 PART NUMBER: 2 DATE: 1
7 8 F03BP Base Plate Fitting 20'x20' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: WEBSITE SKU:
8 1 F048WC 8 Way Crown Fitting inches [mm] 1 C 1 / 50 8/11/2017
4 3 2 1
D D Frame Tubing
8
Item Description Size Color Qty.
3
2 3 Hip Rafter 14’4” (4.3 m) Red 4
6 2 Rafter 10’6” (3.2 m) Green 6
367.35 in 1
[9330.82 mm]
OUTSIDE OF BASEPLATE 1 Spreader 9’4” (2.8 m) White 11
TO OUTSIDE OF BASEPLATE 5
4 Legs 6’8” (2.0 m)/ Brown/ 10
4
7’8” (2.3 m) Black
7
C C
Frame Fittings Sidewalls
Item Description Qty. Size Qty.
5 Corner 4 20’ (6.1 m) 2
6 Side Tee w/ Ring 6 30’ (9.1 m) 2
8 6 Way Crown 2
Standard Pitch = 5’ (1.5 m) 7 Base Plates 10
142.39 in
[3616.63 mm]
B 85.20 in BOTTOM OF BASEPLATE B R Pin/Pin & Bail 72
[2163.95 mm] TO TOP OF RIDGE
BOTTOM OF BASEPLATE
TO TOP OF EAVE Ratchet Buckles 10
Stake/Anchors 10
247.35 in
[6282.82 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 11 2AST112 9'4" (2.8 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
2 6 2AST126 10'6" (3.2 m) - Aluminum Single Tubing PRODUCT DESCRIPTION:
3 4 2AST172 14'4" (4.4 m) - Aluminum Single Tubing 5373 STATE ROUTE 29
CELINA, OH 45822
4 10 2AST80 6'8" (2.0 m) - Aluminum Single Tubing PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
5 4 F01COR Corner Fitting 21 DRAWN BY: TOLERANCE:

Leslie
6 6 F02STRING Side Tee with Ring Fitting CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
PART NUMBER:
7 10 F03BP Base Plate Fitting 20'x30' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
8 2 F056WC 6 Way Crown Fitting inches [mm] 1 C 1 / 63 8/11/2017
