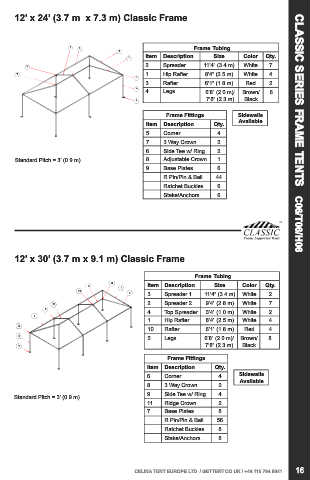

12’ x 24’ (3.7 m x 7.3 m) Classic Frame

4 3 2 1
3 8 Frame Tubing
2
D
D 1 Item Description Size Color Qty.
2 Spreader 11’4” (3.4 m) White 7
6
1 Hip Rafter 8’4” (2.5 m) White 4
7
5
3 Rafter 6’1” (1.8 m) Red 2
297.96 in 4
[7568.09 mm] 4 Legs 6’8” (2.0 m)/ Brown/ 6
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 7’8” (2.3 m) Black
9
Frame Fittings Sidewalls
C C
Item Description Qty. Available
5 Corner 4 CLASSIC SERIES FRAME TENTS C06/T06/H06
7 3 Way Crown 2
6 Side Tee w/ Ring 2
Standard Pitch = 3’ (0.9 m) 8 Adjustable Crown 1
B 120.23 in 9 B Base Plates 6
85.20 in [3053.74 mm]
[2163.95 mm] BOTTOM OF BASEPLATE
BOTTOM OF BASEPLATE TO TOP OF RIDGE R Pin/Pin & Bail 44
TO TOP OF EAVE
Ratchet Buckles 6
Stake/Anchors 6
155.13 in
[3940.30 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 4 2AST100 8'4" (2.5 m) - Aluminum Single Tubing
2 7 2AST136 11'4" (3.5 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
3 2 2AST73 6'1" (1.9 m) - Aluminum Single Tubing PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
4 6 2AST80 6'8" (2 m) - Aluminum Single Tubing CELINA, OH 45822
5 4 F01COR Corner Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
6 2 F02STRING Side Tee with Ring Fitting DRAWN BY: TOLERANCE:
+/-1 in
7 2 F073WC 3 Way Crown Fitting PART NUMBER: Leslie [+/-25.40 mm]
8 1 F09AC Adjustable Crown Fitting 12'x24' Master Series Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
9 6 F39MB Master Tent Base Plate Fitting inches [mm] 1 C 1 / 40 8/4/2017
4 3 2 1
12’ x 30’ (3.7 m x 9.1 m) Classic Frame
4 3 2 1
Frame Tubing
D 8 D
4 Item Description Size Color Qty.
3
11
1 3 Spreader 1 11’4” (3.4 m) White 2
2 Spreader 2 9’4” (2.8 m) White 7
10
9
4 Top Spreader 3’4” (1.0 m) White 2
2
367.35 in
[9330.72 mm] 1 Hip Rafter 8’4” (2.5 m) White 4
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 6
10 Rafter 6’1” (1.8 m) Red 4
5 5 Legs 6’8” (2.0 m)/ Brown/ 8
7’8” (2.3 m) Black
C 7 C
Frame Fittings
Item Description Qty.
6 Corner 4 Sidewalls
8 3 Way Crown 2 Available
Standard Pitch = 3’ (0.9 m) 9 Side Tee w/ Ring 4
119.46 in 11 Ridge Crown 2
[3034.26 mm]
85.20 in BOTTOM OF BASEPLATE
B [2163.95 mm] TO TOP OF RIDGE 7 B Base Plates 8
BOTTOM OF BASEPLATE
TO TOP OF EAVE
R Pin/Pin & Bail 56
Ratchet Buckles 8
151.35 in
[3844.42 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE Stake/Anchors 8
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 4 2AST100 8'4" (2.5 m) - Aluminum Single Tubing
2 7 2AST112 9'4" (2.8 m) - Aluminum Single Tubing 16
3 2 2AST136 11'4" (3.5 m) - Aluminum Single Tubing CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041
4 2 2AST40 3'4" (1.0 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
5 8 2AST80 6'8" (2.0 m) - Aluminum Single Tubing PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
6 4 F01COR Corner Fitting CELINA, OH 45822
7 8 F03BP Base Plate Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
8 2 F073WC 3 Way Crown Fitting DRAWN BY: TOLERANCE:

9 4 F02STRING Side Tee with Ring Fitting PART NUMBER: Leslie
10 4 2AST73 6'1" - Aluminum Single Tubing 12'x30' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
11 2 F08RC Ridge Crown Fitting inches [mm] 1 C 1 / 53 8/10/2017
