4 3 2 1

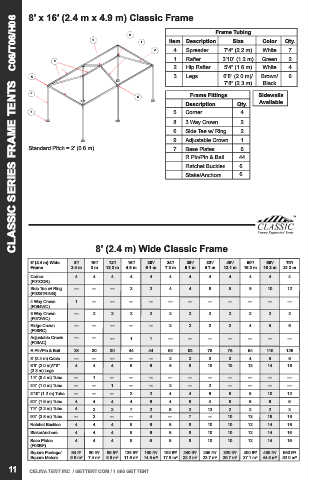

8’ x 16’ (2.4 m x 4.9 m) Classic Frame
CLASSIC SERIES FRAME TENTS C06/T06/H06
Frame Tubing
8
D
D 9 1 Item Description Size Color Qty.
2 4 Spreader 7’4” (2.2 m) White 7
1 Rafter 3’10” (1.2 m) Green 2
4
2 Hip Rafter 5’4” (1.6 m) White 4
199.35 in 5 3 Legs 6’8” (2.0 m)/ Brown/ 6
[5063.62 mm] 7’8” (2.3 m) Black
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
3 Frame Fittings Sidewalls
6
Description Qty. Available
7 5 Corner 4
C C
8 3 Way Crown 2
6 Side Tee w/ Ring 2
9 Adjustable Crown 1
Standard Pitch = 2’ (0.6 m) 7 Base Plates 6
R Pin/Pin & Bail 44
Ratchet Buckles 6
Stake/Anchors 6
108.52 in
[2756.42 mm]
85.20 in BOTTOM OF BASEPLATE
[2163.95 mm] TO TOP OF RIDGE
BOTTOM OF BASEPLATE
B TO TOP OF EAVE B
103.35 in
[2625.22 mm]
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
8’ (2.4 m) Wide Classic Frame
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION 8’ (2.4 m) Wide 8’/ 10’/ 12’/ 16’/ 20’/ 24’/ 30’/ 32’/ 40’/ 50’/ 60’/ 70’/
1 2 2AST46 3'10" (1.2 m) - Aluminum Single Tubing Frame 2.4 m 3 m 12.2 m 4.8 m 6.1 m 7.3 m 9.1 m 9.7 m 12.1 m 15.2 m 18.2 m 21.3 m
2 4 2AST64 5'4" (1.6 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
3 6 2AST80 6'8" (2.0 m)- Aluminum Single Tubing Corner 4 4 4 4 4 4 4 4 4 4 4 4
4 7 2AST88 7'4" (2.2 m) - Aluminum Single Tubing PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
(F01COR)
CELINA, OH 45822
5 4 F01COR Corner Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
2
6 2 F02STRING Side Tee with Ring Fitting Side Tee w/ Ring --- --- --- 2 DRAWN BY: 4 TOLERANCE: 4 6 6 8 10 12
7 6 F03BP Base Plate Fitting (F02STRING) Leslie
PART NUMBER:
8 2 F073WC 3 Way Crown Fitting 8'x16' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
9 1 F09AC Adjustable Crown Fitting 4 Way Crown 1 inches [mm] 1 --- C --- 1/35 --- 8/9/2017 --- --- --- --- --- --- ---
---
4 3 2 1
(F064WC)
3 Way Crown --- 2 2 2 2 2 2 2 2 2 2 2
(F073WC)
Ridge Crown --- --- --- --- --- 2 2 3 3 4 5 6
(F08RC)
Adjustable Crown --- --- --- 1 1 --- --- --- --- --- --- ---
(F09AC)
R Pin/Pin & Bail 28 30 30 44 44 62 62 78 78 94 110 126
8’ (2.4 m) Cable --- --- --- --- --- 2 2 3 3 4 5 6
6’8” (2.0 m)/7’8” 4 4 4 6 6 8 8 10 10 12 14 16
(2.3 m) Legs
1’4” (0.4 m) Tube --- 1 --- --- --- --- --- --- --- --- --- ---
3’4” (1.0 m) Tube --- --- 1 --- --- 2 --- 2 --- --- --- ---
3’10” (1.2 m) Tube --- --- --- 2 2 4 4 6 6 8 10 12
5’4” (1.6 m) Tube 4 4 4 4 6 4 6 4 6 6 6 6
7’4” (2.2 m) Tube 4 2 2 7 2 9 2 12 2 2 2 2
9’4” (2.8 m) Tube --- 2 --- --- 4 --- 7 --- 10 13 16 19
Ratchet Buckles 4 4 4 6 6 8 8 10 10 12 14 16
Stake/Anchors 4 4 4 6 6 8 8 10 10 12 14 16
Base Plates 4 4 4 6 6 8 8 10 10 12 14 16
(F03BP)
Square Footage/ 64 ft² 80 ft²/ 96 ft²/ 128 ft²/ 160 ft²/ 192 ft²/ 240 ft²/ 256 ft²/ 320 ft²/ 400 ft²/ 480 ft²/ 560 ft²/
Square Meters 5.9 m² 7.4 m² 8.9 m² 11.6 m² 14.8 m² 17.8 m² 22.2 m² 23.7 m² 29.7 m² 37.1 m² 44.5 m² 52.0 m²
11 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
