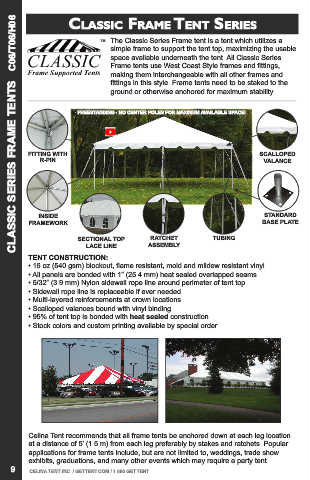

CLASSIC SERIES FRAME TENTS C06/T06/H06
CLASSIC frAME TENT SErIES

The Classic Series Frame tent is a tent which utilizes a
simple frame to support the tent top, maximizing the usable
space available underneath the tent. All Classic Series
Frame tents use West Coast Style frames and fittings,
making them interchangeable with all other frames and
fittings in this style. Frame tents need to be staked to the
ground or otherwise anchored for maximum stability.

FREESTANDING - NO CENTER POLES FOR MAXIMUM AVAILABLE SPACE!

FITTING WITH SCALLOPED
R-PIN VALANCE

INSIDE STANDARD
FRAMEWORK BASE PLATE
SECTIONAL TOP RATCHET TUBING
LACE LINE ASSEMBLY
TENT CONSTRUCTION:
• 16 oz (540 gsm) blockout, flame resistant, mold and mildew resistant vinyl
• All panels are bonded with 1” (25.4 mm) heat sealed overlapped seams
• 5/32” (3.9 mm) Nylon sidewall rope line around perimeter of tent top
• Sidewall rope line is replaceable if ever needed
• Multi-layered reinforcements at crown locations
• Scalloped valances bound with vinyl binding
• 95% of tent top is bonded with heat sealed construction
• Stock colors and custom printing available by special order

Celina Tent recommends that all frame tents be anchored down at each leg location
at a distance of 5’ (1.5 m) from each leg preferably by stakes and ratchets. Popular
applications for frame tents include, but are not limited to, weddings, trade show
exhibits, graduations, and many other events which may require a party tent.
9 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
