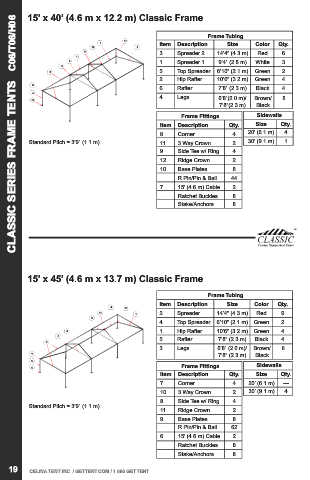

15’ x 40’ (4.6 m x 12.2 m) Classic Frame
4 3 2 1
CLASSIC SERIES FRAME TENTS C06/T06/H06
Frame Tubing
D D
5 11 Item Description Size Color Qty.
12 2
7 3 Spreader 2 14’4” (4.3 m) Red 6
1
6 1 Spreader 1 9’4” (2.8 m) White 3
9
5 Top Spreader 6’10” (2.1 m) Green 2
487.35 in 3
[12378.82 mm]
OUTSIDE OF BASEPLATE 2 Hip Rafter 10’6” (3.2 m) Green 4
TO OUTSIDE OF BASEPLATE
8
6 Rafter 7’8” (2.3 m) Black 4
4
4 Legs 6’8”(2.0 m)/ Brown/ 8
C 10 C
7’8”(2.3 m) Black
Frame Fittings Sidewalls
Item Description Qty. Size Qty.
8 Corner 4 20’ (6.1 m) 4
Standard Pitch = 3’9” (1.1 m) 11 3 Way Crown 2 30’ (9.1 m) 1
9 Side Tee w/ Ring 4
128.16 in
[3255.31 mm]
85.20 in
B [2163.95 mm] BOTTOM OF BASEPLATE 12 B Ridge Crown 2
BOTTOM OF BASEPLATE TO TOP OF RIDGE
TO TOP OF EAVE
10 Base Plates 8
187.35 in
[4758.82 mm] R Pin/Pin & Bail 44
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE
7 15’ (4.6 m) Cable 2
Ratchet Buckles 8
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 3 2AST112 9'4" (2.8 m) - Aluminum Single Tubing Stake/Anchors 8
2 4 2AST126 10'6" (3.2 m) - Aluminum Single Tubing
3 6 2AST172 14'4" (4.4 m) - Aluminum Single Tubing
4 8 2AST80 6'8" (2.0 m) - Aluminum Single Tubing
A 5 2 2AST82 6'10" (2.1 m) - Aluminum Single Tubing THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
6 4 2AST92 7'8" (2.3 m) - Aluminum Single Tubing PRODUCT DESCRIPTION: 5373 STATE ROUTE 29
7 2 ACFTC1875X15CAR 3/16'' x 15' (4.8 mm x 4.6 m) Frame Tent Cable with Carabiners. CELINA, OH 45822
8 4 F01COR Corner Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
9 4 F02STRING Side Tee with Ring Fitting DRAWN BY: TOLERANCE:
10 8 F03BP Base Plate Fitting PART NUMBER: Leslie
11 2 F073WC 3 Way Crown Fitting 15'x40' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
12 2 F08RC Ridge Crown Fitting inches [mm] 1 C 1 / 70 8/10/2017
4 3 2 1
15’ x 45’ (4.6 m x 13.7 m) Classic Frame
4 3 2 1
Frame Tubing
D
D Item Description Size Color Qty.
4 10
11 1 2 Spreader 14’4” (4.3 m) Red 9
5
4 Top Spreader 6’10” (2.1 m) Green 2
1 Hip Rafter 10’6” (3.2 m) Green 4
6
8
547.35 in 5 Rafter 7’8” (2.3 m) Black 4
[13902.82 mm] 2
OUTSIDE OF BASEPLATE
TO OUTSIDE OF BASEPLATE 3 Legs 6’8” (2.0 m)/ Brown/ 8
7’8” (2.3 m) Black
7
3
C C Frame Fittings Sidewalls
9
Item Description Qty. Size Qty.
7 Corner 4 20’ (6.1 m) ---
10 3 Way Crown 2 30’ (9.1 m) 4
8 Side Tee w/ Ring 4
Standard Pitch = 3’9” (1.1 m)
11 Ridge Crown 2
128.16 in 9 Base Plates 8
[3255.31 mm]
B [2163.95 mm] BOTTOM OF BASEPLATE B
85.20 in
BOTTOM OF BASEPLATE TO TOP OF RIDGE R Pin/Pin & Bail 62
TO TOP OF EAVE
6 15’ (4.6 m) Cable 2
187.35 in
[4758.82 mm]
OUTSIDE OF BASEPLATE Ratchet Buckles 8
TO OUTSIDE OF BASEPLATE
Stake/Anchors 8
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION 19 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
1 4 2AST126 10'6" (3.2 m) - Aluminum Single Tubing
2 9 2AST172 14'4" (4.4 m) - Aluminum Single Tubing
3 8 2AST80 6'8" (2.0 m) - Aluminum Single Tubing
4 2 2AST82 6'10" (2.1 m) - Aluminum Single Tubing
A THESE PLANS AND SPECIFICATIONS ARE THE PROPERTY OF CELINA TENT, INC. AND SHALL NOT BE REPRODUCED WITHOUT THEIR WRITTEN PERMISSION. COPYRIGHT 2017 A
5 4 2AST92 7'8" (2.3 m) - Aluminum Single Tubing PRODUCT DESCRIPTION:
6 2 ACFTC1875X15CAR 3/16'' x 15' (4.8 mm x 4.6 m) Frame Tent Cable with Carabiners. 5373 STATE ROUTE 29
CELINA, OH 45822
7 4 F01COR Corner Fitting PH: 419-586-3610 FAX: 419-584-0949
http://www.gettent.com
8 4 F02STRING Side Tee with Ring Fitting DRAWN BY: TOLERANCE:

9 8 F03BP Base Plate Fitting PART NUMBER: Leslie
10 2 F073WC 3 Way Crown Fitting 15'x45' Classic Frame DRAWING UNITS: SHEET NUMBER: SHEET SIZE: REVISION: SCALE: DATE: WEBSITE SKU:
11 2 F08RC Ridge Crown Fitting inches [mm] 1 C 1 / 75 8/10/2017
