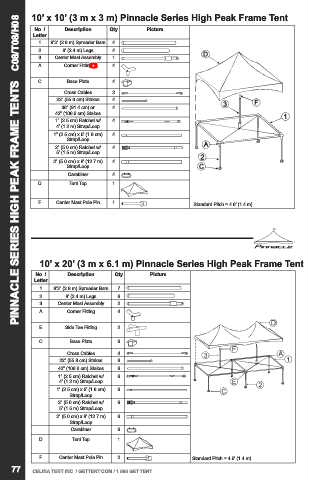

10’ x 10’ (3 m x 3 m) Pinnacle Series High Peak Frame Tent
PINNACLE SERIES HIGH PEAK FRAME TENTS C08/T08/H08
No. / Description Qty Picture
Letter
1 9’3” (2.8 m) Spreader Bars 4
2 8’ (2.4 m) Legs 4
3 Center Mast Assembly 1
A Corner Fitting 4
C Base Plate 4
Cross Cables 2
22” (55.8 cm) Stakes 4
36” (91.4 cm) or 4
42” (106.6 cm) Stakes
1” (2.5 cm) Ratchet w/ 4
4’ (1.2 m) Strap/Loop
1” (2.5 cm) x 6’ (1.8 cm) 4
Strap/Loop
2” (5.0 cm) Ratchet w/ 4
5’ (1.5 m) Strap/Loop
2” (5.0 cm) x 8’ (12.7 m) 4
Strap/Loop
Carabiner 4
D Tent Top 1

F Center Mast Pole Pin 1 Standard Pitch = 4.6’ (1.4 m)

10’ x 20’ (3 m x 6.1 m) Pinnacle Series High Peak Frame Tent
No. / Description Qty Picture
Letter
1 9’3” (2.8 m) Spreader Bars 7
2 8’ (2.4 m) Legs 6
3 Center Mast Assembly 2
A Corner Fitting 4

E Side Tee Fitting 2
C Base Plate 6
Cross Cables 4
22” (55.8 cm) Stakes 6
42” (106.6 cm) Stakes 6
1” (2.5 cm) Ratchet w/ 6
4’ (1.2 m) Strap/Loop
1” (2.5 cm) x 6’ (1.8 cm) 6
Strap/Loop
2” (5.0 cm) Ratchet w/ 6
5’ (1.5 m) Strap/Loop
2” (5.0 cm) x 8’ (12.7 m) 6
Strap/Loop
Carabiner 6
D Tent Top 1

F Center Mast Pole Pin 2 Standard Pitch = 4.6’ (1.4 m)
77 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
