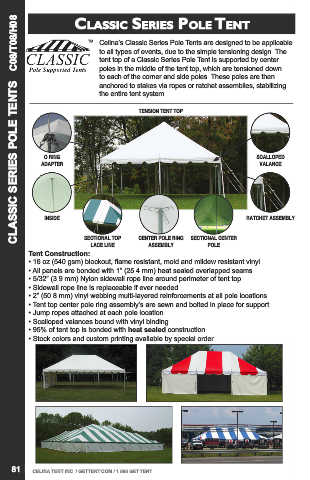

CLASSIC SERIES POLE TENTS C08/T08/H08
CLASSIC SErIES pOLE TENT

Celina’s Classic Series Pole Tents are designed to be applicable
to all types of events, due to the simple tensioning design. The
tent top of a Classic Series Pole Tent is supported by center
poles in the middle of the tent top, which are tensioned down
to each of the corner and side poles. These poles are then
anchored to stakes via ropes or ratchet assemblies, stabilizing
the entire tent system.

TENSION TENT TOP

O RING SCALLOPED
ADAPTER VALANCE

INSIDE RATCHET ASSEMBLY

SECTIONAL TOP CENTER POLE RING SECTIONAL CENTER
LACE LINE ASSEMBLY POLE
Tent Construction:
• 16 oz (540 gsm) blockout, flame resistant, mold and mildew resistant vinyl
• All panels are bonded with 1” (25.4 mm) heat sealed overlapped seams
• 5/32” (3.9 mm) Nylon sidewall rope line around perimeter of tent top
• Sidewall rope line is replaceable if ever needed
• 2” (50.8 mm) vinyl webbing multi-layered reinforcements at all pole locations
• Tent top center pole ring assembly’s are sewn and bolted in place for support
• Jump ropes attached at each pole location
• Scalloped valances bound with vinyl binding
• 95% of tent top is bonded with heat sealed construction
• Stock colors and custom printing available by special order

81 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
