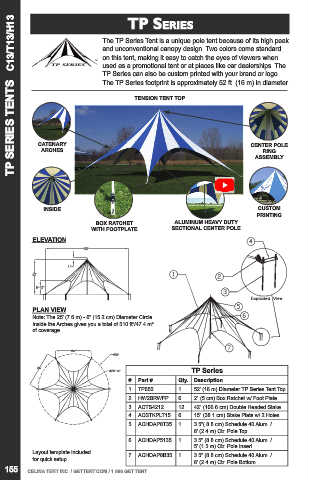

TP SERIES TENTS C13/T13/H13
Tp SErIES

The TP Series Tent is a unique pole tent because of its high peak
and unconventional canopy design. Two colors come standard
on this tent, making it easy to catch the eyes of viewers when
used as a promotional tent or at places like car dealerships. The
TP Series can also be custom printed with your brand or logo.
The TP Series footprint is approximately 52 ft. (16 m) in diameter.

TENSION TENT TOP

CATENARY CENTER POLE
ARCHES RING
ASSEMBLY

INSIDE CUSTOM
PRINTING
BOX RATCHET ALUMINUM HEAVY DUTY
WITH FOOTPLATE SECTIONAL CENTER POLE
ELEVATION

PLAN VIEW
Note: The 25’ (7.6 m) - 6” (15.2 cm) Diameter Circle
Inside the Arches gives you a total of 510 ft²/47.4 m²
of coverage.

TP Series
# Part # Qty. Description
1 TP652 1 52’ (16 m) Diameter TP Series Tent Top
2 HW2BRWFP 6 2” (5 cm) Box Ratchet w/ Foot Plate
3 ACTS4212 12 42” (106.6 cm) Double Headed Stake
4 ACSTKPLT15 6 15” (38.1 cm) Stake Plate w/ 2 Holes
5 ACHDAP8T35 1 3.5”( 8.8 cm) Schedule 40 Alum. /
8’ (2.4 m) Ctr. Pole Top
6 ACHDAP5135 1 3.5” (8.8 cm) Schedule 40 Alum. /
5’ (1.5 m) Ctr. Pole Insert
Layout template included 7 ACHDAP8B35 1 3.5” (8.8 cm) Schedule 40 Alum. /
for quick setup 8’ (2.4 m) Ctr. Pole Bottom
