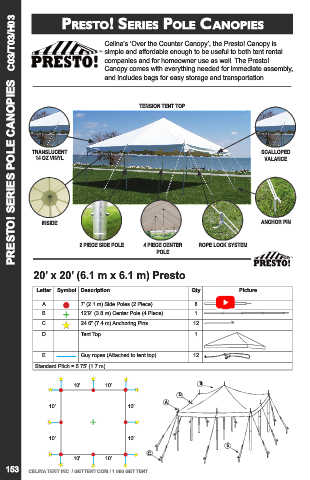

PRESTO! SERIES POLE CANOPIES   C03/T03/H03
                 prESTO! SErIES pOLE CANOpIES

                            Celina’s ‘Over the Counter Canopy’, the Presto! Canopy is
                            simple and affordable enough to be useful to both tent rental
                            companies and for homeowner use as well. The Presto!
                            Canopy comes with everything needed for immediate assembly,
                            and includes bags for easy storage and transportation.


                                    TENSION TENT TOP






         TRANSLUCENT                                               SCALLOPED
          14 OZ VINYL                                               VALANCE








            INSIDE                                                 ANCHOR PIN

                     2 PIECE SIDE POLE  4 PIECE CENTER   ROPE LOCK SYSTEM
                                         POLE

         20’ x 20’ (6.1 m x 6.1 m) Presto

          Letter  Symbol Description              Qty         Picture
            A         7’ (2.1 m) Side Poles (2 Piece)  8
            B         12’9” (3.8 m) Center Pole (4 Piece)  1
            C         24.6” (7.4 m) Anchoring Pins  12
            D         Tent Top                    1

            E         Guy ropes (Attached to tent top)  12
          Standard Pitch = 5.75’ (1.7 m)

                    10’     10’                     B
                                              D
                                           A
              10’                 10’


              10’                 10’
                                                           E
                                       C
                    10’     10’
   153   CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
