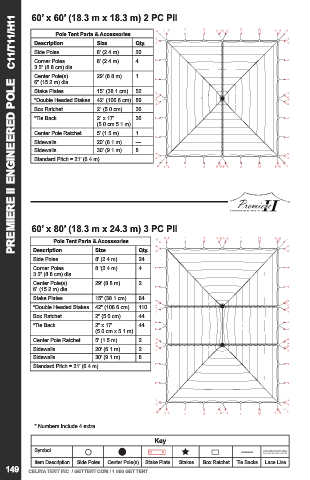

60’ x 60’ (18.3 m x 18.3 m) 2 PC PII
PREMIERE II ENGINEERED POLE C11/T11/H11
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 20
Corner Poles 8’ (2.4 m) 4
3.5” (8.8 cm) dia.
Center Pole(s) 29’ (8.8 m) 1
6” (15.2 m) dia.
Stake Plates 15” (38.1 cm) 52
*Double Headed Stakes 42” (106.6 cm) 89
Box Ratchet 2” (5.0 cm) 36
*Tie Back 2” x 17’ 36
(5.0 cm 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 1
Sidewalls 20’ (6.1 m) ---
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 21’ (6.4 m)

60’ x 80’ (18.3 m x 24.3 m) 3 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 24
Corner Poles 8 ’(2.4 m) 4
3.5” (8.8 cm) dia.
Center Pole(s) 29’ (8.8 m) 2
6” (15.2 m) dia.
Stake Plates 15” (38.1 cm) 64
*Double Headed Stakes 42” (106.6 cm) 110
Box Ratchet 2” (5.0 cm) 44
*Tie Back 2” x 17’ 44
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 2
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 21’ (6.4 m)

* Numbers Include 4 extra

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
149 CELINA TENT INC. / GETTENT.COM / 1.866.GET.TENT
