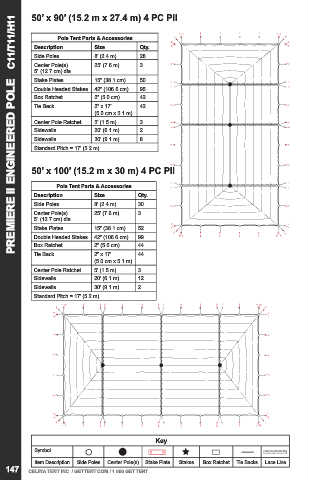

50’ x 90’ (15.2 m x 27.4 m) 4 PC PII
PREMIERE II ENGINEERED POLE C11/T11/H11
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 28
Center Pole(s) 25’ (7.6 m) 3
5” (12.7 cm) dia.
Stake Plates 15” (38.1 cm) 50
Double Headed Stakes 42” (106.6 cm) 95
Box Ratchet 2” (5.0 cm) 42
Tie Back 2” x 17’ 42
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 3
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 8
Standard Pitch = 17’ (5.2 m)

50’ x 100’ (15.2 m x 30 m) 4 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 30
Center Pole(s) 25’ (7.6 m) 3
5” (12.7 cm) dia.
Stake Plates 15” (38.1 cm) 52
Double Headed Stakes 42” (106.6 cm) 99
Box Ratchet 2” (5.0 cm) 44
Tie Back 2” x 17’ 44
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 3
Sidewalls 20’ (6.1 m) 12
Sidewalls 30’ (9.1 m) 2
Standard Pitch = 17’ (5.2 m)

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
