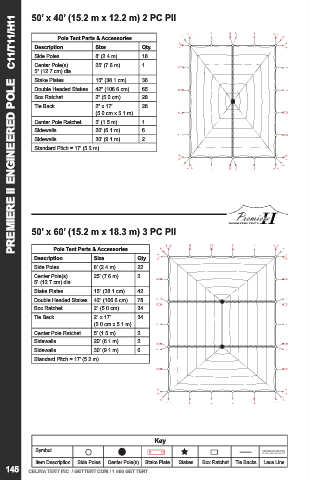

Page 146 - layouthandbook

50’ x 40’ (15.2 m x 12.2 m) 2 PC PII
PREMIERE II ENGINEERED POLE C11/T11/H11
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 18
Center Pole(s) 25’ (7.6 m) 1
5” (12.7 cm) dia.
Stake Plates 15” (38.1 cm) 36
Double Headed Stakes 42” (106.6 cm) 65
Box Ratchet 2” (5.0 cm) 28
Tie Back 2” x 17’ 28
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 1
Sidewalls 20’ (6.1 m) 6
Sidewalls 30’ (9.1 m) 2
Standard Pitch = 17’ (5.2 m)

50’ x 60’ (15.2 m x 18.3 m) 3 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 22
Center Pole(s) 25’ (7.6 m) 2
5” (12.7 cm) dia.
Stake Plates 15” (38.1 cm) 42
Double Headed Stakes 42” (106.6 cm) 78
Box Ratchet 2” (5.0 cm) 34
Tie Back 2” x 17’ 34
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 2
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 6
Standard Pitch = 17’ (5.2 m)
