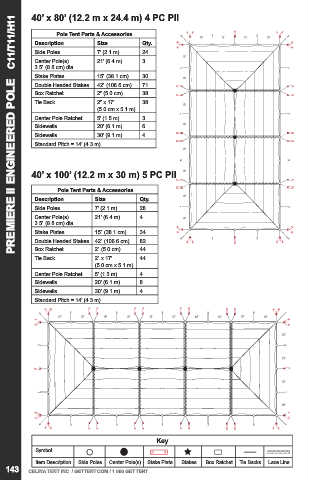

40’ x 80’ (12.2 m x 24.4 m) 4 PC PII
PREMIERE II ENGINEERED POLE C11/T11/H11
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 24
Center Pole(s) 21’ (6.4 m) 3
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 30
Double Headed Stakes 42” (106.6 cm) 71
Box Ratchet 2” (5.0 cm) 38
Tie Back 2” x 17’ 38
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 3
Sidewalls 20’ (6.1 m) 6
Sidewalls 30’ (9.1 m) 4
Standard Pitch = 14’ (4.3 m)

40’ x 100’ (12.2 m x 30 m) 5 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 28
Center Pole(s) 21’ (6.4 m) 4
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 34
Double Headed Stakes 42” (106.6 cm) 82
Box Ratchet 2” (5.0 cm) 44
Tie Back 2” x 17’ 44
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 4
Sidewalls 20’ (6.1 m) 8
Sidewalls 30’ (9.1 m) 4
Standard Pitch = 14’ (4.3 m)

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
