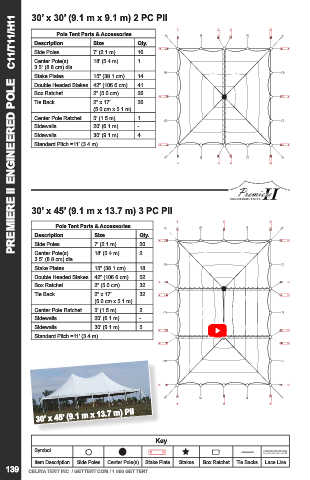

30’ x 30’ (9.1 m x 9.1 m) 2 PC PII
PREMIERE II ENGINEERED POLE C11/T11/H11
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 16
Center Pole(s) 18’ (5.4 m) 1
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 14
Double Headed Stakes 42” (106.6 cm) 41
Box Ratchet 2” (5.0 cm) 26
Tie Back 2” x 17’ 26
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 1
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 4
Standard Pitch =11’ (3.4 m)

30’ x 45’ (9.1 m x 13.7 m) 3 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 20
Center Pole(s) 18’ (5.4 m) 2
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 18
Double Headed Stakes 42” (106.6 cm) 52
Box Ratchet 2” (5.0 cm) 32
Tie Back 2” x 17’ 32
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 2
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 5
Standard Pitch =11’ (3.4 m)

30’ x 45’ (9.1 m x 13.7 m) PII

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
