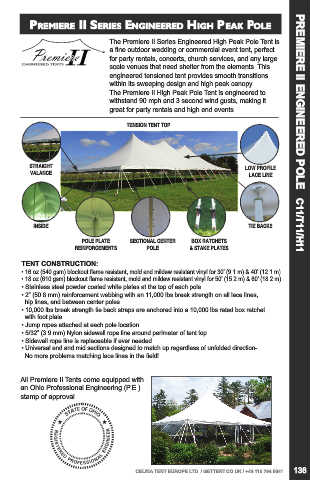

prEMIErE II SErIES ENGINEErED HIGH pEAK pOLE

The Premiere II Series Engineered High Peak Pole Tent is
a fine outdoor wedding or commercial event tent, perfect
for party rentals, concerts, church services, and any large
scale venues that need shelter from the elements. This
engineered tensioned tent provides smooth transitions
within its sweeping design and high peak canopy.
The Premiere II High Peak Pole Tent is engineered to
withstand 90 mph and 3 second wind gusts, making it
great for party rentals and high end events.
TENSION TENT TOP PREMIERE II ENGINEERED POLE C11/T11/H11

STRAIGHT LOW PROFILE
VALANCE LACE LINE

INSIDE TIE BACKS
POLE PLATE SECTIONAL CENTER BOX RATCHETS
REINFORCEMENTS POLE & STAKE PLATES
TENT CONSTRUCTION:
• 16 oz (540 gsm) blockout flame resistant, mold and mildew resistant vinyl for 30’ (9.1 m) & 40’ (12.1 m)
• 18 oz (610 gsm) blockout flame resistant, mold and mildew resistant vinyl for 50’ (15.2 m) & 60’ (18.2 m)
• Stainless steel powder coated white plates at the top of each pole
• 2” (50.8 mm) reinforcement webbing with an 11,000 lbs break strength on all lace lines,
hip lines, and between center poles
• 10,000 lbs break strength tie back straps are anchored into a 10,000 lbs rated box ratchet
with foot plate
• Jump ropes attached at each pole location
• 5/32” (3.9 mm) Nylon sidewall rope line around perimeter of tent top
• Sidewall rope line is replaceable if ever needed
• Universal end and mid sections designed to match up regardless of unfolded direction-
No more problems matching lace lines in the field!

All Premiere II Tents come equipped with
an Ohio Professional Engineering (P.E.)
stamp of approval.

138
CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041
