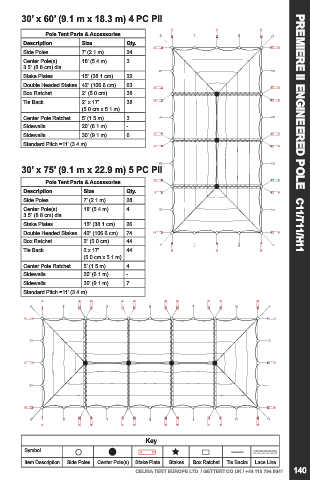

30’ x 60’ (9.1 m x 18.3 m) 4 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 24
Center Pole(s) 18’ (5.4 m) 3
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 22
Double Headed Stakes 42” (106.6 cm) 63
Box Ratchet 2” (5.0 cm) 38
Tie Back 2” x 17’ 38
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 3
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 6 PREMIERE II ENGINEERED POLE C11/T11/H11
Standard Pitch =11’ (3.4 m)

30’ x 75’ (9.1 m x 22.9 m) 5 PC PII
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 28
Center Pole(s) 18’ (5.4 m) 4
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 26
Double Headed Stakes 42” (106.6 cm) 74
Box Ratchet 2” (5.0 cm) 44
Tie Back 2 x 17’ 44
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 4
Sidewalls 20’ (6.1 m) -
Sidewalls 30’ (9.1 m) 7
Standard Pitch =11’ (3.4 m)
