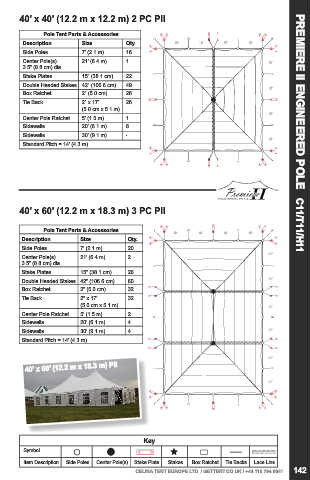

40’ x 40’ (12.2 m x 12.2 m) 2 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 16
Center Pole(s) 21’ (6.4 m) 1
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 22
Double Headed Stakes 42” (106.6 cm) 49
Box Ratchet 2” (5.0 cm) 26
Tie Back 2” x 17’ 26
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 1
Sidewalls 20’ (6.1 m) 8
Sidewalls 30’ (9.1 m) - PREMIERE II ENGINEERED POLE C11/T11/H11
Standard Pitch = 14’ (4.3 m)

40’ x 60’ (12.2 m x 18.3 m) 3 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 20
Center Pole(s) 21’ (6.4 m) 2
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 26
Double Headed Stakes 42” (106.6 cm) 60
Box Ratchet 2” (5.0 cm) 32
Tie Back 2” x 17’ 32
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 2
Sidewalls 20’ (6.1 m) 4
Sidewalls 30’ (9.1 m) 4
Standard Pitch = 14’ (4.3 m)

40’ x 60’ (12.2 m x 18.3 m) PII

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041 142
