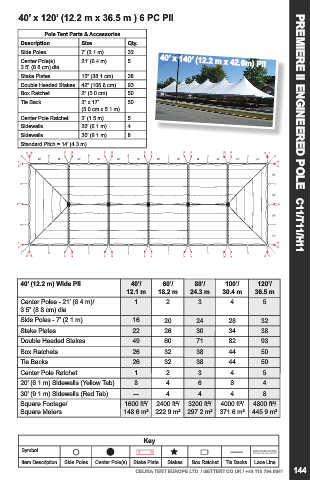

40’ x 120’ (12.2 m x 36.5 m ) 6 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 7’ (2.1 m) 32
Center Pole(s) 21’ (6.4 m) 5 40’ x 140’ (12.2 m x 42.6m) PII
3.5” (8.8 cm) dia.
Stake Plates 15” (38.1 cm) 38
Double Headed Stakes 42” (106.6 cm) 93
Box Ratchet 2” (5.0 cm) 50
Tie Back 2” x 17’ 50
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 5
Sidewalls 20’ (6.1 m) 4
Sidewalls 30’ (9.1 m) 8 PREMIERE II ENGINEERED POLE C11/T11/H11
Standard Pitch = 14’ (4.3 m)

40’ (12.2 m) Wide PII 40’/ 60’/ 80’/ 100’/ 120’/
12.1 m 18.2 m 24.3 m 30.4 m 36.5 m
Center Poles - 21’ (6.4 m)/ 1 2 3 4 5
3.5” (8.8 cm) dia.
Side Poles - 7’ (2.1 m) 16 20 24 28 32
Stake Plates 22 26 30 34 38
Double Headed Stakes 49 60 71 82 93
Box Ratchets 26 32 38 44 50
Tie Backs 26 32 38 44 50
Center Pole Ratchet 1 2 3 4 5
20’ (6.1 m) Sidewalls (Yellow Tab) 8 4 6 8 4
30’ (9.1 m) Sidewalls (Red Tab) --- 4 4 4 8
Square Footage/ 1600 ft²/ 2400 ft²/ 3200 ft²/ 4000 ft²/ 4800 ft²/
Square Meters 148.6 m² 222.9 m² 297.2 m² 371.6 m² 445.9 m²

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
CELINA TENT EUROPE LTD. / GETTENT.CO.UK / +44 115 794 0041 144
