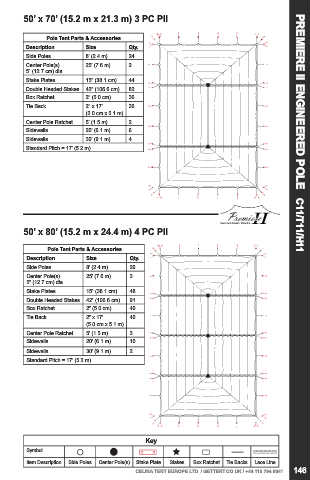

Page 147 - layouthandbook

50’ x 70’ (15.2 m x 21.3 m) 3 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 24
Center Pole(s) 25’ (7.6 m) 2
5” (12.7 cm) dia.
Stake Plates 15” (38.1 cm) 44
Double Headed Stakes 42” (106.6 cm) 82
Box Ratchet 2” (5.0 cm) 36
Tie Back 2” x 17’ 36
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 2
Sidewalls 20’ (6.1 m) 6 PREMIERE II ENGINEERED POLE C11/T11/H11
Sidewalls 30’ (9.1 m) 4
Standard Pitch = 17’ (5.2 m)

50’ x 80’ (15.2 m x 24.4 m) 4 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 26
Center Pole(s) 25’ (7.6 m) 3
5” (12.7 cm) dia.
Stake Plates 15” (38.1 cm) 48
Double Headed Stakes 42” (106.6 cm) 91
Box Ratchet 2” (5.0 cm) 40
Tie Back 2” x 17’ 40
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 3
Sidewalls 20’ (6.1 m) 10
Sidewalls 30’ (9.1 m) 2
Standard Pitch = 17’ (5.2 m)

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
