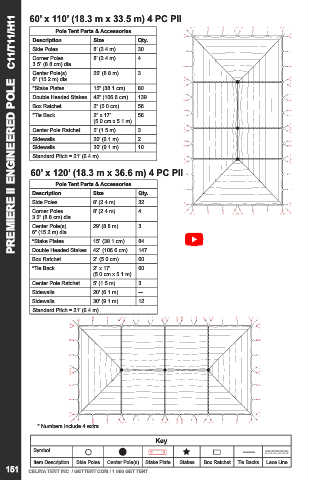

60’ x 110’ (18.3 m x 33.5 m) 4 PC PII
PREMIERE II ENGINEERED POLE C11/T11/H11
Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 30
Corner Poles 8’ (2.4 m) 4
3.5” (8.8 cm) dia.
Center Pole(s) 29’ (8.8 m) 3
6” (15.2 m) dia.
*Stake Plates 15” (38.1 cm) 80
Double Headed Stakes 42” (106.6 cm) 139
Box Ratchet 2” (5.0 cm) 56
*Tie Back 2” x 17’ 56
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 3
Sidewalls 20’ (6.1 m) 2
Sidewalls 30’ (9.1 m) 10
Standard Pitch = 21’ (6.4 m)
60’ x 120’ (18.3 m x 36.6 m) 4 PC PII

Pole Tent Parts & Accessories
Description Size Qty.
Side Poles 8’ (2.4 m) 32
Corner Poles 8’ (2.4 m) 4
3.5” (8.8 cm) dia.
Center Pole(s) 29’ (8.8 m) 3
6” (15.2 m) dia.
*Stake Plates 15” (38.1 cm) 84
Double Headed Stakes 42” (106.6 cm) 147
Box Ratchet 2” (5.0 cm) 60
*Tie Back 2” x 17’ 60
(5.0 cm x 5.1 m)
Center Pole Ratchet 5’ (1.5 m) 3
Sidewalls 20’ (6.1 m) ---
Sidewalls 30’ (9.1 m) 12
Standard Pitch = 21’ (6.4 m)

* Numbers Include 4 extra

Key
Symbol
Item Description Side Poles Center Pole(s) Stake Plate Stakes Box Ratchet Tie Backs Lace Line
