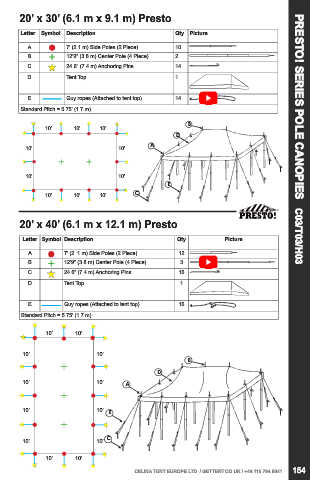

20’ x 30’ (6.1 m x 9.1 m) Presto
Letter Symbol Description Qty Picture
A 7’ (2.1 m) Side Poles (2 Piece) 10
B 12’9” (3.8 m) Center Pole (4 Piece) 2
C 24.6” (7.4 m) Anchoring Pins 14
D Tent Top 1
E Guy ropes (Attached to tent top) 14
Standard Pitch = 5.75’ (1.7 m)
B
10’ 10’ 10’
D PRESTO! SERIES POLE CANOPIES C03/T03/H03
10’ 10’ A
10’ 10’
E
10’ 10’ 10’ C
20’ x 40’ (6.1 m x 12.1 m) Presto
Letter Symbol Description Qty Picture
A 7’ (2. 1 m) Side Poles (2 Piece) 12
B 12’9” (3.8 m) Center Pole (4 Piece) 3
C 24.6” (7.4 m) Anchoring Pins 16
D Tent Top 1
E Guy ropes (Attached to tent top) 16
Standard Pitch = 5.75’ (1.7 m)
10’ 10’
10’ 10’
B
D
10’ 10’ A
10’ 10’ E
10’ 10’ C
10’ 10’
